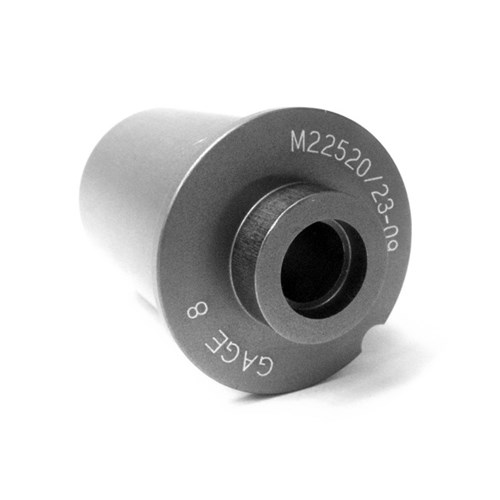

Astro Tool - Locator (M22520/23-09) 8 Gage

Astro Tool - Locator (M22520/23-09) 8 Gage

https://www.roctexo.com/web/image/product.template/134216/image_1920?unique=f99d34f
Part numbers : RX1-11-20372 , AMT23009L , 11-20372
Unit of Measure: EA

79.93 EUR / EA 79.93 EUR 79.93 € excl. VAT

79.93 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA available on request, fees apply
Special order from vendor stock.

The Astro Tool AMT23009L is a locator identified as M22520/23-09 and DMC WA23-9. It is intended for size 8 pin and socket contact crimping operations.

Designed for use with the Astro Tool AMT23B pneumatic crimp tool frame, this locator works in conjunction with the required die assembly to position the contact during crimping.

  • Manufacturer part number: AMT23009L
  • Tool identification: M22520/23-09
  • Cross-reference designation: DMC WA23-9
  • Contact size: 8
  • Use with: Astro Tool AMT23B pneumatic crimp tool frame
  • Compatible tooling requirement: die assembly required
  • Unit of measure: each

Confirm the applicable contact and tooling configuration against the relevant maintenance data and current tooling documentation before use.
