Astro Tool - Positioner (M22520/2-02)

Astro Tool - Positioner (M22520/2-02)

https://www.roctexo.com/web/image/product.template/134202/image_1920?unique=a22e726
Part numbers : RX1-11-20358 , 615718 , 11-20358
Unit of Measure: EA

101.74 EUR / EA 101.74 EUR 101.74 € excl. VAT

101.74 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA available on request, fees apply
Special order from vendor stock.

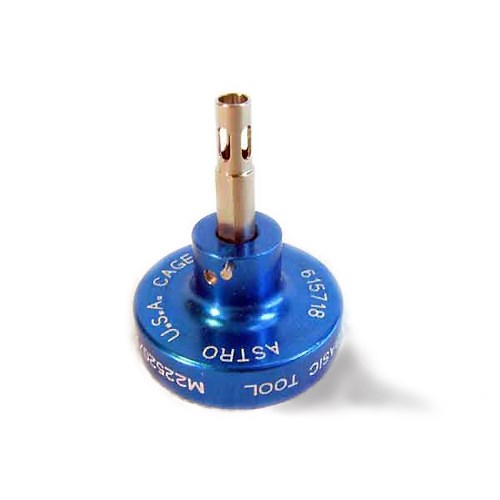

The Astro Tool 615718 is a K1S/DMC bayonet positioner, identified as M22520/2-02, for positioning size 20 pin and socket contacts during crimping operations.

It is specified by Astro Tool for use with the 615717 hand crimp tool frame (M22520/2-01) and the 621100 pneumatic crimper. The positioner is intended for designated contacts used in MIL-C-5015, MIL-C-26482, MIL-C-26500 and MIL-C-83723 circular connector systems.

  • Manufacturer part number: 615718
  • Tooling designation: M22520/2-02
  • Type: K1S/DMC bayonet positioner
  • Contact size: 20 pin and socket contacts
  • Examples of specified contact references include MS3192-20-20, MS3193-20-20, MS24254-20P, MS24254-20S, M39029/4-110, M39029/5-115, M39029/10-138 through M39029/10-142, and M39059/9-132 through M39059/9-136.

Please confirm the applicable contact part number and tooling configuration against current manufacturer documentation before use.

Documentation: Astro Tool product catalogue and positioner selection information.
