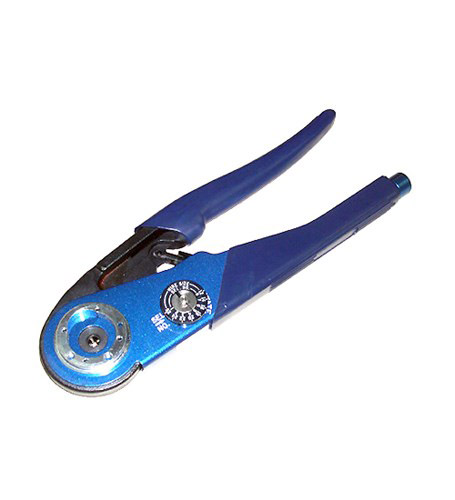

Astro Tool - Crimp Tool (M22520/1-01) Large

Image for illustration only. It may show a product series rather than the exact product offered.

Astro Tool - Crimp Tool (M22520/1-01) Large

https://www.roctexo.com/web/image/product.template/134195/image_1920?unique=9d6e623
Part numbers : RX1-11-20351 , 615708 , 11-20351
Unit of Measure: EA

602.63 EUR / EA 602.63 EUR 602.63 € excl. VAT

602.63 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 2 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 5 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
9 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Astro Tool 615708 is an adjustable 8-indent crimp tool identified as M22520/1-01. It is designed for crimping machined pin and socket contacts within the 20–12 AWG wire-barrel range.

The tool features an 8-step selector for crimp adjustment and a positive, controlled-cycle ratchet to support completion of the crimp cycle. It is used with a turret head, positioner or universal head selected for the applicable contact part number.

  • Manufacturer part number: 615708
  • Tool designation: M22520/1-01 / AS22520/1
  • Crimp style: 8-indent
  • Wire-barrel range: 20–12 AWG
  • Adjustable 8-step selector
  • Controlled-cycle ratchet mechanism

Suitable for professional electrical connector assembly and maintenance work where the specified contact tooling arrangement is required. Refer to the relevant contact documentation to select the correct turret head or positioner.

Manufacturer documentation: Astro Tool online catalogue, 615708 adjustable upper-range 8-indent crimp tool.
