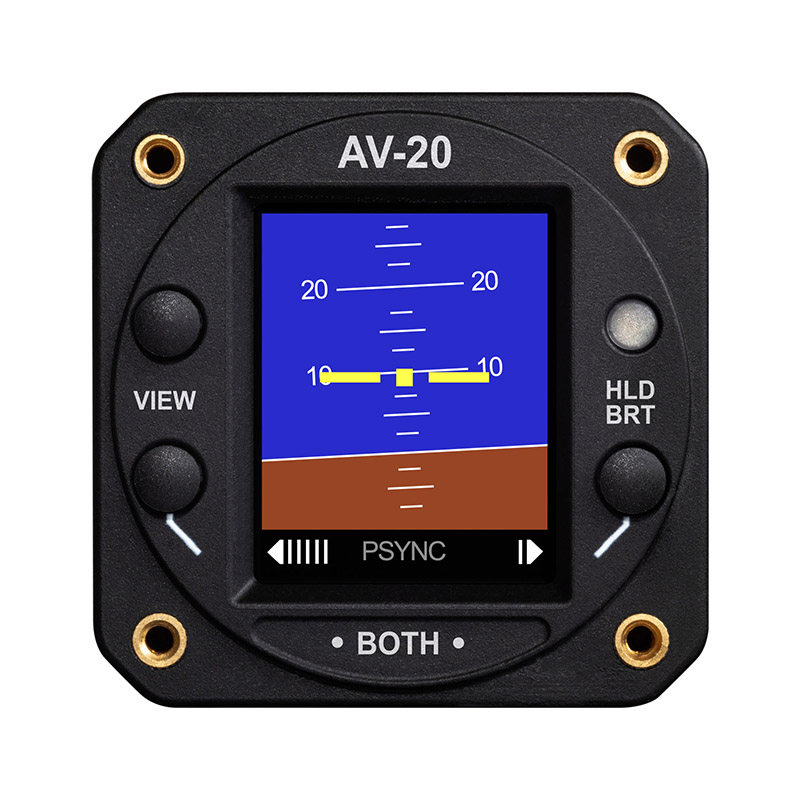

uAvionix AV-20-E - Experimental Only

The uAvionix AV-20-E is a compact multi-function display for experimental aircraft panels. Designed for a standard 2¼-inch round instrument opening, it combines essential flight-information, timing and monitoring functions in a single sunlight-readable display.

Manufacturer part number: UAX-90062-01

Approval status: Experimental aircraft only; not EASA/FAA approved.

• Attitude display with roll and pitch indication
• Angle-of-attack display with voice alerting and peak indication
• G-meter with voice alerting and peak indication
• Slip/skid indication
• GMT/local clock, dual timers, engine run timer and flight timer
• Outside-air-temperature, density-altitude, true-airspeed and bus-voltage displays
• Internal battery operation for up to 30 minutes under stated standard conditions
• Nominal input: 10 to 32 VDC; nominal power consumption: 3 W
• 9-pin male D-sub electrical connector and ¼-inch OD quick-connect pneumatic connections

The unit measures approximately 61 × 61 × 30 mm excluding the connector. Refer to the manufacturer’s AV-20-E product page and documentation for installation instructions, pilot guidance and current service information.
