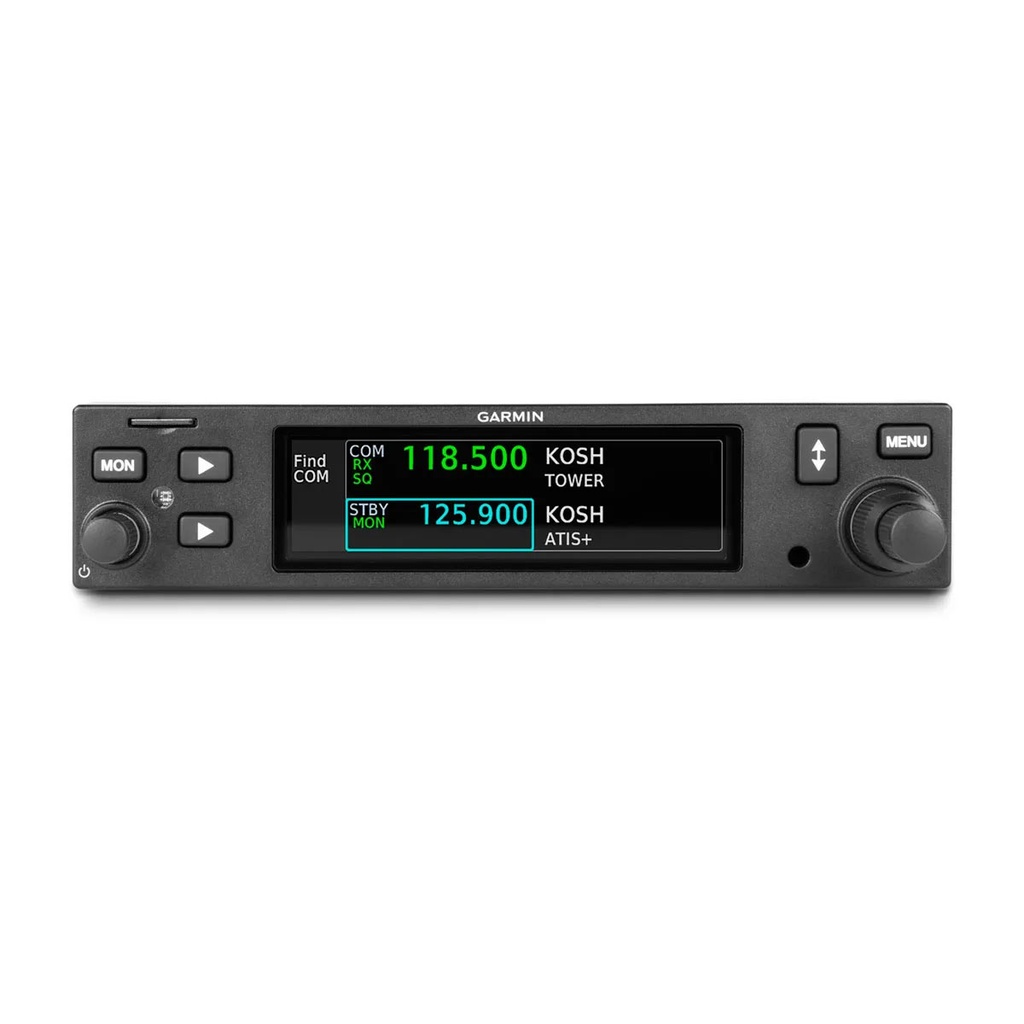

Garmin GTR 205 Helo VHF Comm Certified Aircraft Kit

The Garmin GTR 205 Helo VHF COMM Certified Aircraft Kit is a panel-mount VHF communication solution for helicopter installations. Supplied under Garmin manufacturer part number 010-02480-02, it combines a compact GTR 205 COMM transceiver with pilot-selectable 8.33 kHz or 25 kHz channel spacing for international operating environments.

The GTR 205 provides active and standby frequency operation on a sunlight-readable colour LCD display. Its COMM monitoring function allows reception of a standby frequency while remaining tuned to the active frequency. The unit also offers frequency memory and recall, a worldwide frequency database, direct 121.5 MHz emergency-frequency tuning and an integrated flight timer.

• VHF COMM frequency range: 118.000 to 136.992 MHz
• 760 channels with 25 kHz spacing or 2,280 channels with 8.33 kHz spacing
• 10 W VHF transmit power
• Active/standby frequency display and standby COMM monitoring
• Compact 1.35-inch (approximately 34 mm) bezel-height format
• Designed by Garmin for certified fixed-wing aircraft and helicopters

FAA TSO authorisation applies to the GTR 205 equipment; it does not by itself provide airworthiness approval for installation in a type-certified aircraft. Installation and approval requirements should be confirmed for the individual aircraft and applicable authority.

Manufacturer part number: 010-02480-02

Relevant documentation: Garmin GTR 205/GNC 215 Pilot’s Guide.
