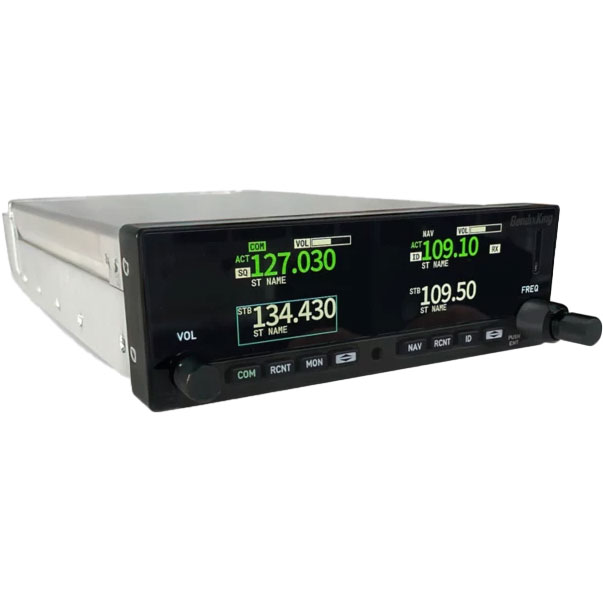

King Kx 200 Nav COMMGS With 14V Retrofit Adapter
Part Number(s): 11-19760, 89000002-120-14
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-19760
Overview
| General aviation’s newest and most advanced NAV/COM radio is pilot-friendly by design. That’s because we consulted pilots at every phase of a development process that started with a blank CAD screen and ended with the creation of a groundbreaking new radio for the 2020s and beyond. The BendixKing KX 200 is an easy direct replacement with the same footprint as your current KX 155 radio. But that is where the similarity ends. The KX 200 features:
BendixKing Makes Upgrading to the KX 200 Easy Moving up to the KX 200 couldn’t be easier, since it’s a direct replacement for your current KX 155 and can substitute other radios using the same tray and connector. That also means the KX 200 is compatible with existing equipment, which reduces both cost and aircraft downtime during the conversion. |
Specifications
| Supply Voltage | 14 and 28 volt system |
|---|---|
| Current consumption | ≤ 750 mA @ 12V; RX RX stand-by mode ≤ 400 mA @ 28 VDC; RX stand-by mode ≤ 2.5 A @ 12 VDC; TX mode (m ≥ 70%, 1 kHz) ≤ 1.8 A @ 28 VDC; TX mode (m ≥ 70%, 1 kHz) |
| Operating temperature | -20…+55 °C |
| Control interface | COM: RS422 NAV: RS422 |
| Dimensions HxWxD (install. Depth) | 52.1 x 158.8 x 224 mm (2.1 x 6.3 x 8.8 inch) |
| Weight | ≤ 1.5 kg |
| COM Transceiver | |
| Number of channel memory | 50 + 10 Last |
| Channel labeling | Yes |
| Receiver | |
| Frequency range | 118.000- 136.991666 MHz |
| Channel spacing | 8.33 / 25 kHz |
| Modulation | AM |
| Audio frequency response | 350…2500 Hz @ 8.33 kHz channel spacing 350…3000 Hz (typically 300…3400 Hz) @ 25 kHz channel spacing |
| Sensitivity | ≤ -93 dBm (typically -101 dBm) for AM 30%, 1000 Hz |
| Spurious response | ≥ -33 dBm |
| Dual watch (SCAN) | Yes |
| Climax operation | YES, Class H2 receiver |
| Frequency change notification | Yes |
| Squetch threshold | 6…26 dB |
| Single / multicarrier distortions | ≤ 25% (typically ≤ 15%) for AM 85% |
| Transmitter | |
| Transmitting power | ≥ 6 W @ 14 VDC, ≥ 10 W @ 28 VDC |
| Modulation capability | ≥ 70%, ≤ 95% |
| Frequency stability | better than ± 5 ppm |
| Modulated audio distortion | ≤ 15% |
| Modulated audio response | 350…2500 Hz |
| Stuck PPT | 35 s |
| NAV Receiver | |
| NAV channels | 108.00 … 117.95 MHz |
| Number of channel memory | 50 + 10 Last |
| NAV sensitivity | -93 dBm, -107 Dbm (typically) |
| VOR/LOC output | Composite signal for external VOR/LOC converter and indicator |
| Auxiliary power supply output | up 500 mA |
| ILS energize output | Open collector to ground discrete output |
| DME channeling | Serial DME channeling provided for KN 62A, KN 63, KN 64 |
| NAV audio output power | ≥ 100 mW @ 500 Ω, ≥ 100 mW @ 600 Ω |
| IDENT notch filter | ON/OFF |
| GS channels | 329.15…335.00 MHZ |
In The Box
- King KX 200 NAV/COM With GS
- King KX 200 Retrofit Adapter (Optional)
