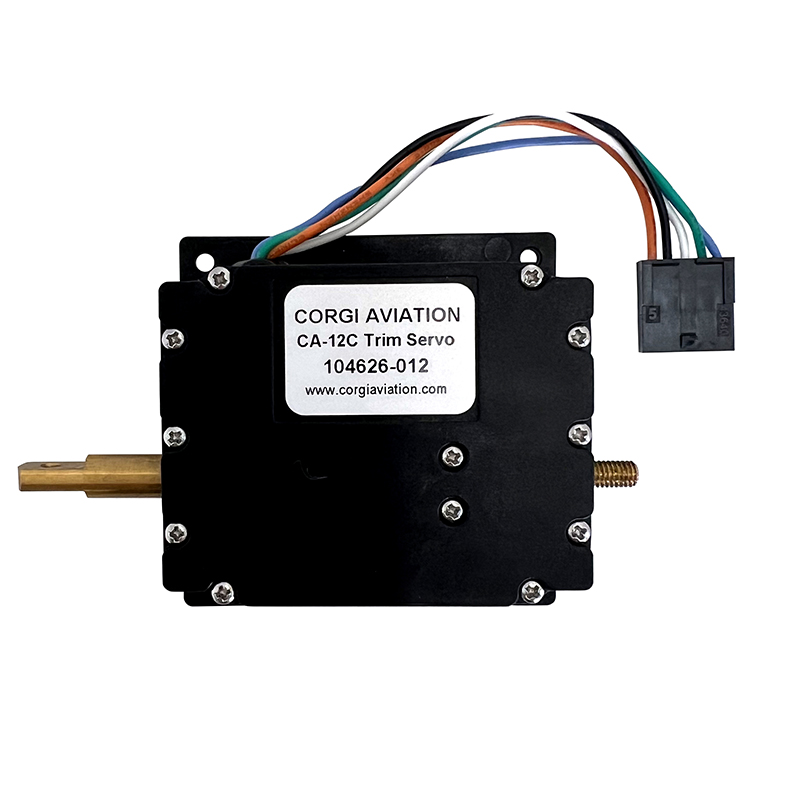

CA-12C Trim Servo - 1.2 Inch Travel - Clevis End

CA-12C Trim Servo - 1.2 Inch Travel - Clevis End

https://www.roctexo.com/web/image/product.template/133657/image_1920?unique=6b4fee8
Part numbers : RX1-11-19715 , 104626-012 , 11-19715
Unit of Measure: EA

319.09 EUR / EA 319.09 EUR 319.09 € excl. VAT

319.09 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Monday 2026-08-17
Order before 17:00 CET Tomorrow
1 EA available on request, fees apply
Special order from vendor stock.

The Corgi Aviation CA-12C is an electric trim servo with a clevis-end output shaft and 30.5 mm travel. It is designed for trim-surface control and other systems in homebuilt and light-aircraft applications.

Manufacturer part number: 104626-012

  • Model: CA-12C
  • Output shaft: Clevis end
  • Shaft travel: 30.5 mm
  • Operating voltage: 6–15 V DC
  • Travel time: 18 seconds at 13.5 V DC
  • Maximum operating thrust: 50 lb
  • Housing material: Glass-filled nylon
  • Approximate dimensions (L × W × H): 70 × 70 × 27 mm
  • Weight: 0.17 kg
  • Operating temperature: -30 °C to +60 °C

The manufacturer states that the servo is supplied with one 5-pin Molex Micro-Fit male connector and five female crimp pins. Installation configuration and connecting hardware should be selected for the specific aircraft installation.

Refer to the Corgi Aviation Trim Servo Installation Guide for installation, wiring and control-connection information.
