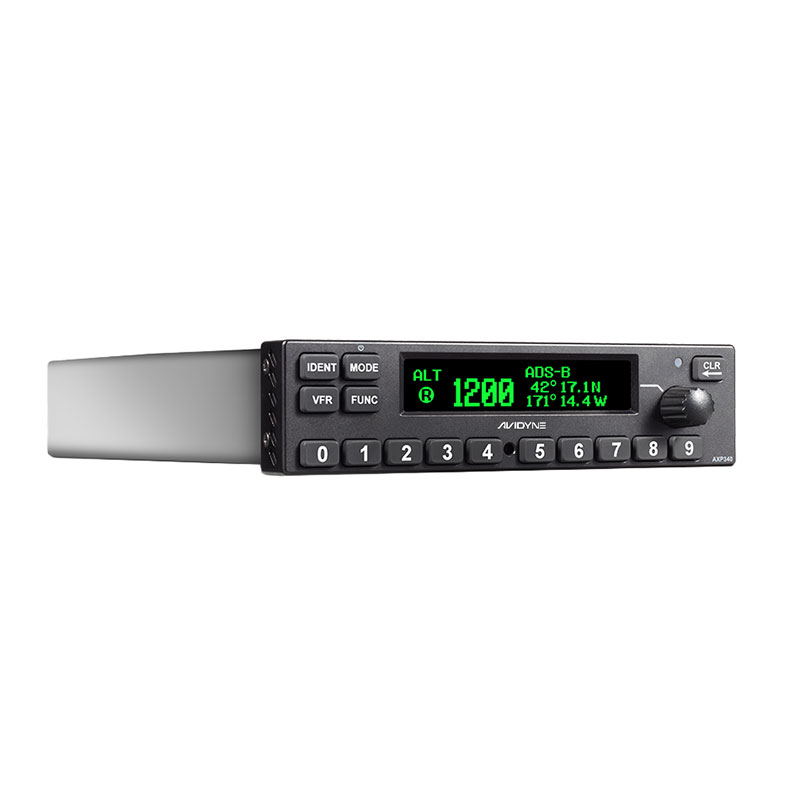

Avidyne AxP340 With Skytrax 200 Ads-In & Out Bundle

The Avidyne AxP340 with SkyTrax200 ADS-In & Out Bundle brings together a panel-mounted Mode S ADS-B Out transponder and a dual-band ADS-B In receiver for an integrated surveillance avionics solution.

The AXP340 is a Class 1 Mode S Level 2es datalink transponder supporting 1090 MHz Extended Squitter (ES). When installed with an appropriate ADS-B-compliant GPS position source, it can transmit ADS-B Out information including position, ground track, ground speed and altitude data.

The SkyTrax200 is a receive-only dual-band ADS-B In receiver operating on 1090 MHz and 978 MHz. It is designed to provide ADS-B traffic and Flight Information System-Broadcast data to compatible avionics displays.

• Manufacturer part number: AV-BDL-S005
• Includes Avidyne AXP340 ADS-B Out panel-mount transponder and SkyTrax200 ADS-B In receiver
• AXP340 supports 1090 MHz Extended Squitter
• SkyTrax200 provides dual-band ADS-B reception on 1090 MHz and 978 MHz
• Professional installation and configuration in accordance with applicable approved data and current manufacturer documentation are required.

Relevant manufacturer documentation is available from Avidyne: AXP340 and SkyTrax product manuals and guides.
