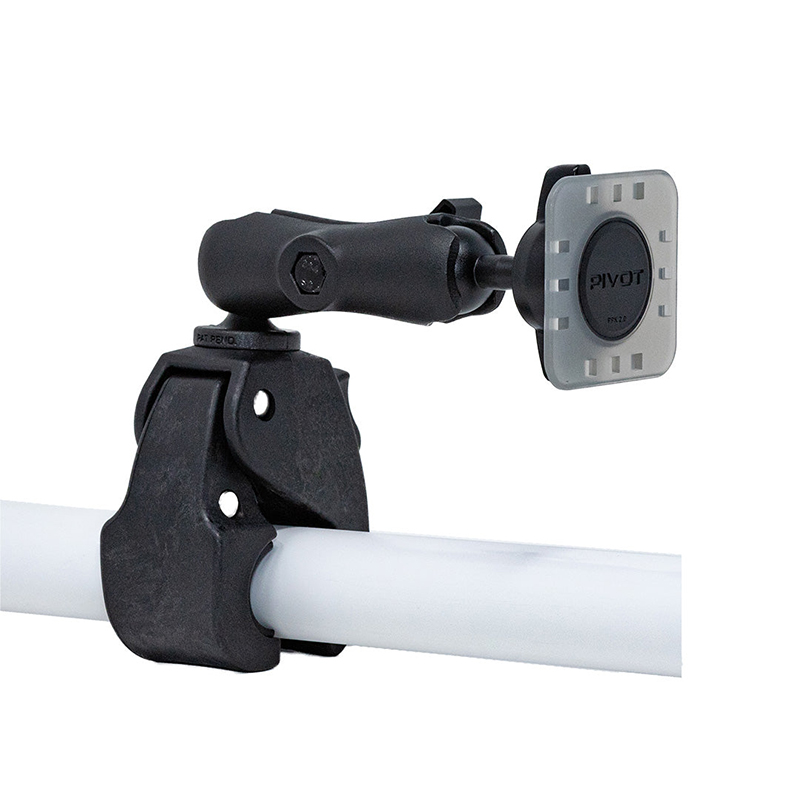

Flyboys Pivot Custom Mount - Small Claw / Medium Socket Arm / RAM Connector With Ppk Mounting Plate

The FlyBoys PIVOT Custom Mount, part number PM-SCLS-2, is a configurable device-mount assembly comprising a small Tough-Claw clamp, medium socket arm, RAM connector and PPK mounting plate.

The small claw is intended for round, square and irregular rails or bars with an outside diameter of approximately 15.9 to 38.1 mm, as well as flat surfaces up to approximately 29 mm thick. The assembly uses high-strength composite components with stainless-steel hardware; the double-socket arm and double-ball adapter are specified as marine-grade aluminium.

The PPK mounting plate provides PIVOT Click-Connect attachment for PIVOT cases. Verify the mounting location, clearances and full freedom of flight-control movement before operation.

• Manufacturer part number: PM-SCLS-2
• Configuration: small claw / medium socket arm / RAM connector / PPK mounting plate
• Small-claw range: approximately 15.9–38.1 mm round surfaces; up to approximately 29 mm flat-surface thickness
• Unit of measure: each
