Comant CI-119 VHF Comm Blade 4 Internal Hole Mount Offset

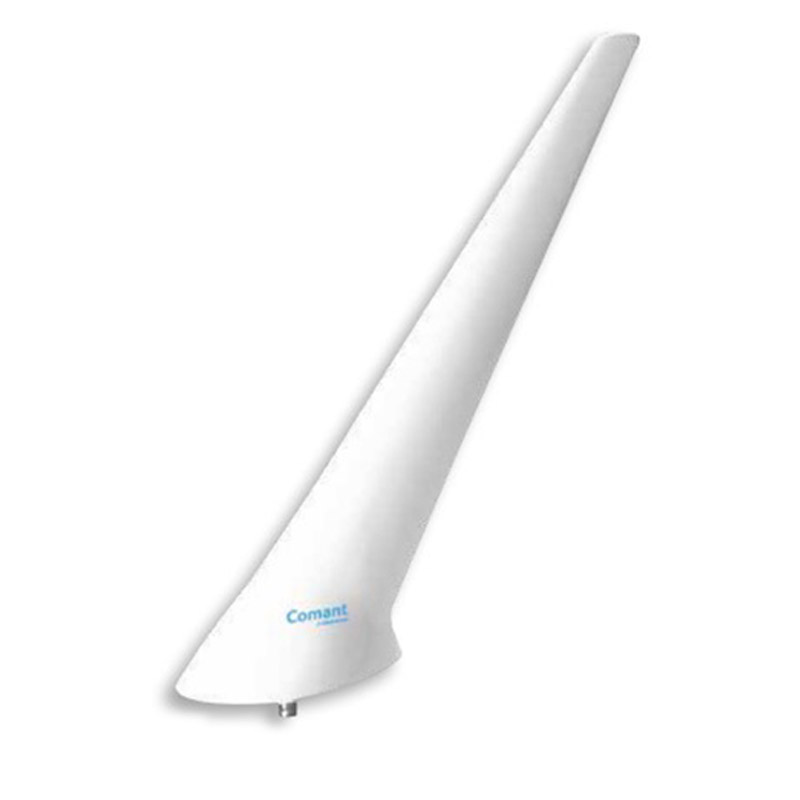

Image for illustration only. It may show a product series rather than the exact product offered.

Comant CI-119 VHF Comm Blade 4 Internal Hole Mount Offset

https://www.roctexo.com/web/image/product.template/133365/image_1920?unique=9ca5186
Part numbers : RX1-11-19390 , CI-119 , 11-19390
Unit of Measure: EA

845.40 EUR / EA 845.4 EUR 845.40 € excl. VAT

845.40 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Comant CI-119 is a blade-style VHF communications antenna for installations operating in the 118–137 MHz band. Manufacturer part number CI-119, this antenna features a four-hole internal mounting arrangement and an offset female BNC connector.

The antenna assembly is enclosed in an aerodynamically shaped moulded shell, with internal components supported for mechanical integrity. Its reduced-height blade profile is designed for external aircraft antenna installations.

  • Frequency range: 118–137 MHz
  • RF impedance: 50 Ω
  • Maximum RF power: 25 W
  • Maximum VSWR: 2.9:1
  • Polarisation: vertical
  • Radiation pattern: omnidirectional
  • Connector: offset female BNC
  • Mounting: four-hole internal mount
  • Maximum height: approximately 330 mm
  • Environmental temperature range: −55 °C to +85 °C
  • FAA TSO: C37d and C38d; RTCA environmental qualification: DO-160D

Confirm the part number, connector orientation, mounting-hole pattern and applicable approved installation data before installation. Refer to the manufacturer’s CI-119 datasheet and installation drawing for installation dimensions and requirements.
