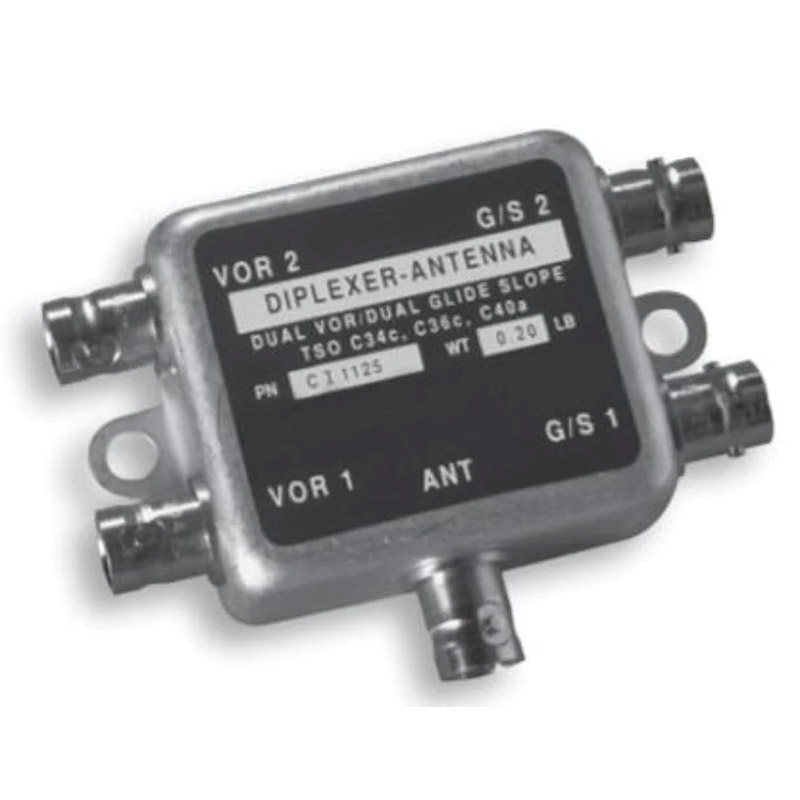

Comant CI-1125-TNC Diplexer Single Nav VOR / LOC / GS Input To Dual VOR / Loc

The Comant CI-1125-TNC is a dual VOR/dual glide-slope diplexer for distributing signals from one VOR/LOC and glide-slope antenna to two VOR and two glide-slope receiver inputs. It is intended for avionics installations requiring separate NAV signal inputs from a common antenna system.

This CI-1125 variant is supplied in the TNC connector configuration and is designed for internal aircraft mounting. Its aluminium housing provides a compact, durable solution for NAV signal distribution within the avionics installation.

• Manufacturer: Comant Industries
• Manufacturer part number: CI-1125-TNC
• Function: dual VOR/LOC and dual glide-slope diplexer
• Frequency ranges: 108–118 MHz and 329–335 MHz
• RF impedance: 50 Ω
• Maximum VSWR: 1.5:1
• Isolation: 20 dB between VOR and glide-slope circuits; 18 dB between respective VOR or glide-slope ports
• Construction: aluminium housing with aluminium finish
• Installation: internal mounting
• Documented FAA TSO designations: C34c, C36c and C40a

Confirm connector interfaces, installation configuration and aircraft/avionics approval requirements with the applicable approved maintenance data before installation.
