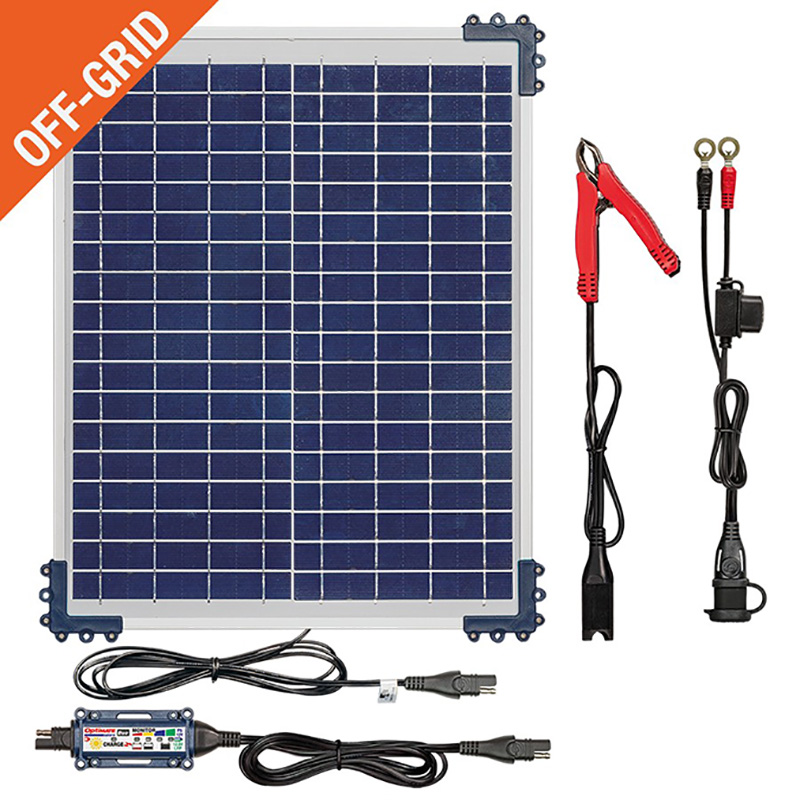

Optimate Solar Duo Standard Kit 20 Watt 12V

The OptiMate Solar DUO Standard Kit, manufacturer part number TM522-D2, is a 20 W solar-powered charger and maintainer for 12 V lead-acid and 12.8 V lithium LFP batteries. Its separate OptiMate DUO charge-monitor controller is designed to charge and maintain the connected battery in daylight, while monitoring battery condition when solar power is unavailable.

The kit combines a weatherproof polycrystalline solar panel in an aluminium frame with a fully automatic charge-monitor controller. It is suitable where a mains-powered maintainer is not practical and the panel can be positioned for direct sunlight.

• Maximum solar-panel output: 20 W
• Nominal battery systems: 12 V lead-acid and 12.8 V lithium LFP
• Supported lead-acid battery types: standard, AGM and GEL
• Recommended battery capacity range: 2–240 Ah
• Maximum average charging current: 1.67 A; pulse current: 3–5 A
• Low-voltage recovery function for batteries from 4 V
• Battery-condition indication and automatic charge/monitor operation
• Weatherproof polycrystalline panel with aluminium frame and four mounting brackets
• Panel dimensions including corner brackets: approximately 36.2 × 45.5 × 2.6 cm
• Solar-panel output cable: 2 m with SAE connector

Manufacturer part number: TM522-D2.

Confirm battery chemistry, voltage, capacity and installation requirements before use in any aircraft or ground-support application.
