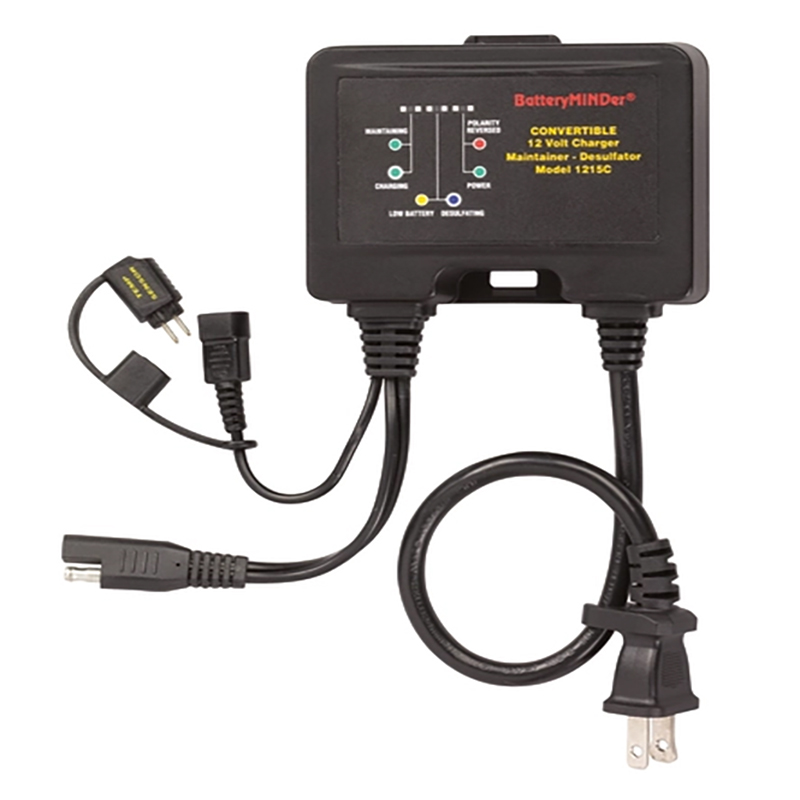

BatteryMINDer 12V Convertible Charger/Maintainer/Desulfator

The BatteryMINDer® 1215C is a convertible 12 V, 1.5 A charger, maintainer and desulfator designed for benchtop or mounted use. Its compact format can be fitted to either of the two supplied mounting brackets, allowing the unit to be moved between a permanent battery connection and a workbench application.

For compatible 12 V lead-acid batteries, the microprocessor-controlled unit uses a seven-stage charging process with continuous high-frequency pulse desulfation. The integrated Auto-Temp Sensor provides high/low temperature compensation to help manage charging in varying ambient conditions.

• Manufacturer part number: 1215C
• 12 V output; 1.5 A charging current
• For 12 V flooded, sealed maintenance-free, AGM, starter and deep-cycle lead-acid batteries
• 90–240 VAC, 47–63 Hz input
• High-frequency pulse desulfation and automatic temperature compensation
• Overcharge and reverse-polarity protection
• Approximate dimensions: 102 × 76 × 32 mm
• Product weight: 0.49 kg

Supplied with an installed Auto-Temp Compensation Sensor, two mounting brackets with screws, fully insulated battery clips with replaceable 15 A fuse, and a ring-terminal assembly with replaceable 15 A fuse.

Please consult the manufacturer’s operating manual for installation instructions, battery suitability, electrical safety information and operating limitations.
