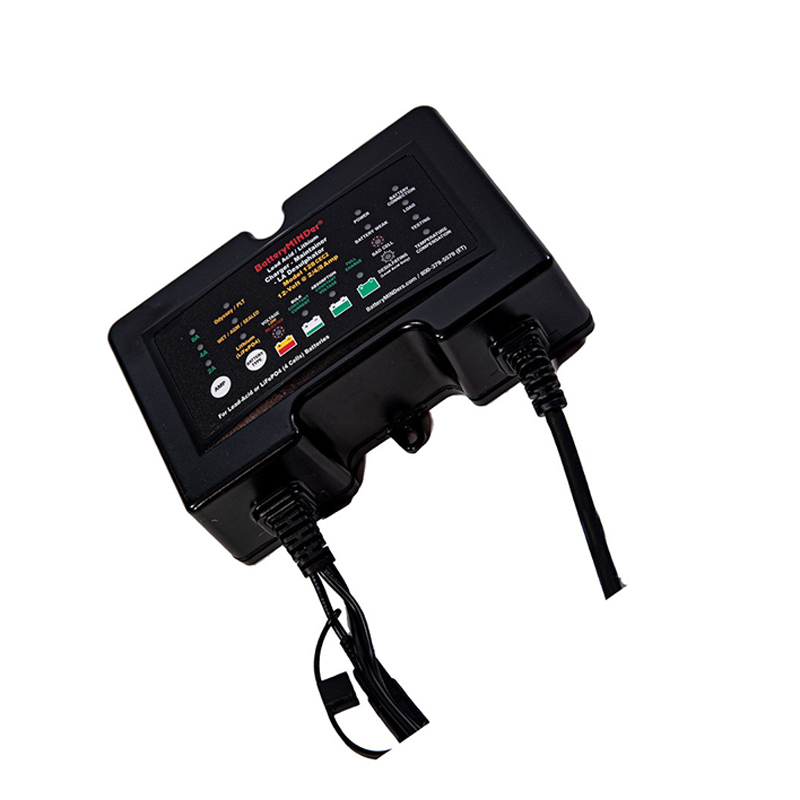

BatteryMINDer 12V 248A CeC2 Charger/Maintainer/Desulfator + Lithium

BatteryMINDer® 128CEC2 is a 12 V charger, maintainer and desulfator with selectable 2 A, 4 A and 8 A charging output. It is intended for maintenance charging of 12 V flooded, sealed maintenance-free and AGM lead-acid batteries, and includes a 12 V lithium battery maintainer function.

The unit incorporates automatic temperature compensation for lead-acid batteries, plus overcharge and reverse-polarity protection. Its IP65-rated enclosure is designed for protection against dust and water jets.

• Manufacturer part number: 128CEC2
• Nominal battery voltage: 12 V
• Selectable charging current: 2 A / 4 A / 8 A
• AC input: 90–140 VAC, 47–63 Hz
• Lead-acid temperature compensation range: -20 °C to +50 °C
• Approximate enclosure dimensions: 186 × 124 × 62 mm
• Includes installed temperature sensor, insulated battery-clip lead with quick connector and replaceable 15 A fuse, ring-terminal lead, and instruction manual

Important: the manufacturer identifies the standard 128CEC2 model as not for aviation. It is not EASA/FAA approved. Verify battery manufacturer requirements, battery condition and local electrical supply suitability before use. This model is specified for 90–140 VAC input; an appropriate step-down transformer is required where the available mains supply exceeds this range.

Manufacturer documentation: BatteryMINDer 128CEC2 / 244CEC2 instruction manual.
