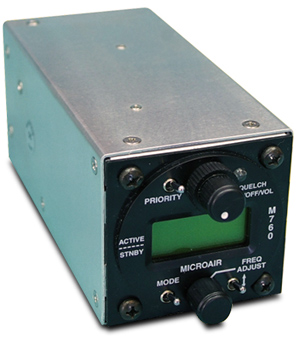

Microair M760 VHF COMMTransceiver Rev Q

The Microair M760 Rev Q is a compact panel-mounted VHF AM aircraft transceiver designed around a 57 mm instrument-panel opening. It combines active/standby dual monitoring, a two-line alphanumeric backlit display and 99 programmable memory channels in a space-efficient radio format.

Manufacturer part numbers: 20000133 and 827TRA1001-Q.

• Transmit coverage: 118.000–136.975 MHz, 760 channels at 25 kHz spacing
• Receive coverage: 108.000–136.975 MHz, 1,160 channels at 25 kHz spacing
• Nominal RF carrier output: 5 W
• Active/standby dual monitoring with selectable scan delay
• 99 programmable memories with memory sorting by name and priority key
• Internal VOX intercom, auxiliary audio input with automatic mute, and headset/speaker audio outputs
• SL30 interface and RS232 data interface
• 10–16 V DC input range
• Unit dimensions: 65 mm W × 59 mm H × 135 mm D, plus approximately 35 mm for the harness
• 57 mm exposed dial face; documented unit weight: 416 g

Please review the installation documentation and confirm the applicable airworthiness, approval and installation requirements before selecting this transceiver for an aircraft installation.

Documentation: M760 Rev Q brochure and M760Q installation and user manual.
