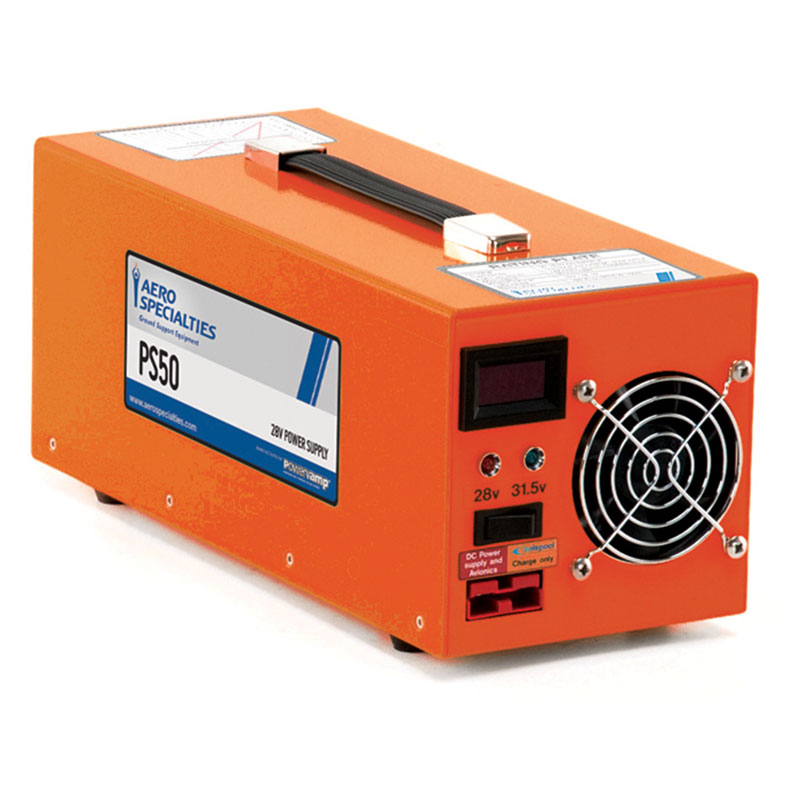

Powervamp PS50M Base Unit 6.5Foot 28V Lexan Aircraft Connector Output + SB50 Us Input

The Powervamp PS50M is a solid-state, portable aircraft power supply and charger base unit for ground-support applications. This configuration is supplied with a 6.5 ft (approx. 2 m) Lexan aircraft connector output and SB50 US input.

It provides selectable 28 V DC or 31.5 V DC output, with a maximum output current of 50 A. The 28 V setting supports stable DC power requirements, while the 31.5 V setting is intended for rapid charging of compatible Powervamp 28 V DC Coolspool portable start units.

• Selectable 28 V DC / 31.5 V DC output
• Maximum output current: 50 A
• Automatic 90–264 V AC, 47–63 Hz input-voltage selection
• Front-panel output-voltage selector and LED status indication
• Solid-state LED voltmeter
• Thermal, current-overload, short-circuit and over-voltage protection
• Corrosion-resistant aluminium case with carry handle and shock-absorbing anti-slip feet
• Forced ventilation

The PS50M may also be used as a portable bench power supply when fitted with suitable optional lead sets or clamps. Its compact aluminium enclosure is designed for practical handling in maintenance and ground-power environments.

Roctexo part number: RX1-11-18658.
