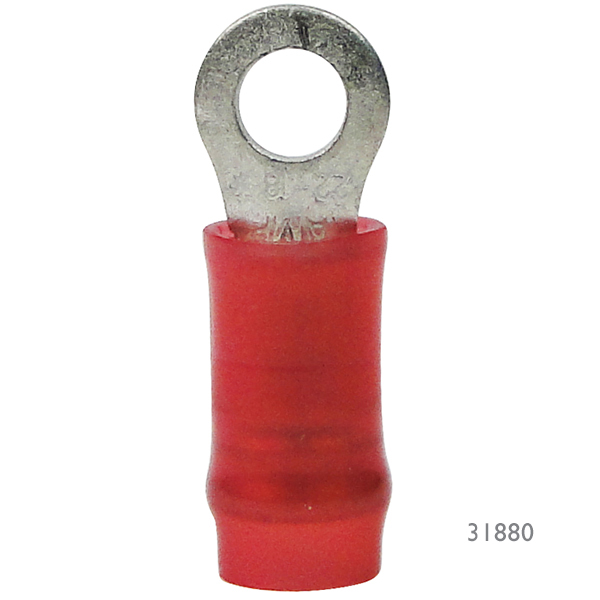

TE PIDG Ring Tongue Terminal 16-14 Awg .1.25-2MM .79MM 320565

Image for illustration only. It may show a product series rather than the exact product offered.

TE PIDG Ring Tongue Terminal 16-14 Awg .1.25-2MM .79MM 320565

https://www.roctexo.com/web/image/product.template/121367/image_1920?unique=968d3f3
Part numbers : RX1-11-18372 , 320565 , 11-18372
Unit of Measure: EA

0.24 EUR / EA 0.24 EUR 0.24 € excl. VAT

0.24 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 6,987 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 16,351 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
25,746 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

TE Connectivity PIDG closed ring tongue terminal, manufacturer part number 320565. This straight, partially insulated crimp terminal is intended for terminating 16–14 AWG (1.04–2.62 mm²) copper conductors to a #8/M4 stud connection.

  • Closed ring tongue terminal with closed barrel
  • Wire range: 16–14 AWG (1.04–2.62 mm²)
  • Stud size: #8 / M4; stud-hole diameter: 4.34 mm
  • Tin-plated terminal contact
  • With wire insulation support
  • Terminal orientation: straight
  • Partially insulated PIDG construction
  • Voltage rating: 300 V
  • Operating temperature range: 0 to 105 °C
  • Tongue thickness: 0.79 mm

Suitable for electrical harness and panel-wiring work where the conductor size and stud dimensions match the stated specification. Select and install in accordance with applicable approved maintenance data and the terminal manufacturer’s current instructions.

Documentation: TE Connectivity customer drawing 320565 and Application Specification 114-2157.

Reference: TE Connectivity part number 320565.
