uAvionix tailBeaconX TSO And AV-30-C ADS-B Out Mfd Bundle

uAvionix tailBeaconX TSO And AV-30-C ADS-B Out Mfd Bundle

https://www.roctexo.com/web/image/product.template/85574/image_1920?unique=a6adc07
Part numbers : RX1-11-18367 , UAX-90059-05 , 11-18367
Unit of Measure: EA

4526.44 EUR / EA 4526.44 EUR 4,526.44 € excl. VAT

4526.44 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 5 EA ready to ship on Thursday 2026-08-13
Order before 16:00 CET on Tuesday 2026-08-11
14 EA available on request, fees apply
Special order from vendor stock.

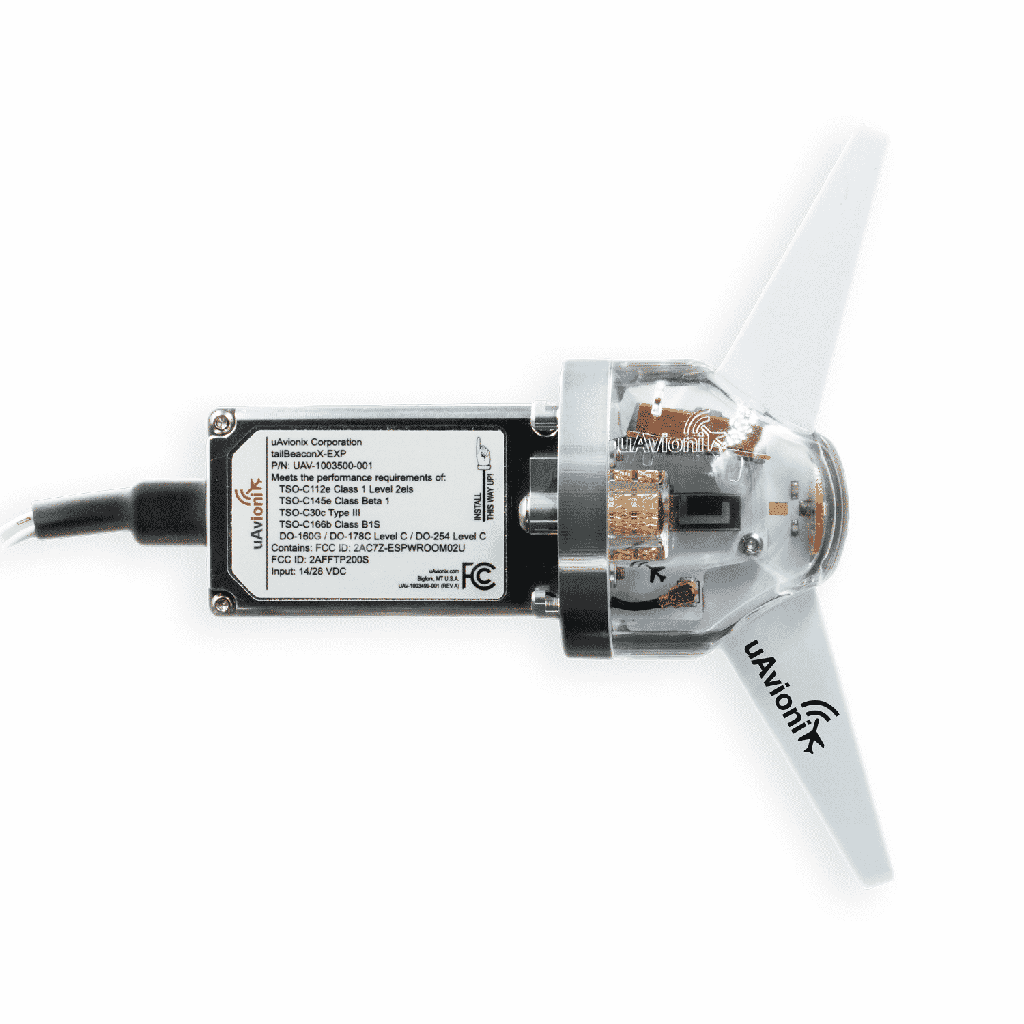

The uAvionix tailBeaconX TSO + AV-30-C Bundle combines the tailBeaconX TSO tail-mounted ADS-B Out solution with the certified AV-30-C control and display unit.

tailBeaconX integrates a 1090 MHz Mode S Extended Squitter transponder, SBAS/WAAS GPS receiver, associated antennas and an LED rear position light in one tail-mounted assembly. The AV-30-C provides the control interface for transponder functions while retaining its digital display functionality.

  • Manufacturer part number: UAX-90059-05
  • tailBeaconX TSO with integrated Mode S Extended Squitter ADS-B Out transponder
  • Integrated SBAS/WAAS GPS and LED rear position light
  • AV-30-C control interface for tailBeaconX operation

Installation note: Installation must be completed in accordance with the applicable uAvionix installation data and the aircraft’s approved modification basis. The manufacturer documentation identifies installation of an AV-30-C as a prerequisite for the tailBeaconX STC installation. Aircraft eligibility and acceptance by the applicable aviation authority should be confirmed before installation.

Documentation: uAvionix product information · tailBeaconX support and documentation · AV-30-C/tailBeaconX Getting Started Guide
