uAvionix tailBeaconX TSO All In One Nav / ADS-B Out

uAvionix tailBeaconX TSO All In One Nav / ADS-B Out

https://www.roctexo.com/web/image/product.template/81170/image_1920?unique=f21a4c9
Part numbers : RX1-11-18363 , UAX-90059-03 , 11-18363
Unit of Measure: EA

2192.09 EUR / EA 2192.09 EUR 2,192.09 € excl. VAT

2192.09 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 3 EA ready to ship on Monday 2026-08-10
Order before 17:00 CET Today
Up to 8 EA ready to ship on Thursday 2026-08-13
Order before 17:00 CET Today
14 EA available on request, fees apply
Special order from vendor stock.

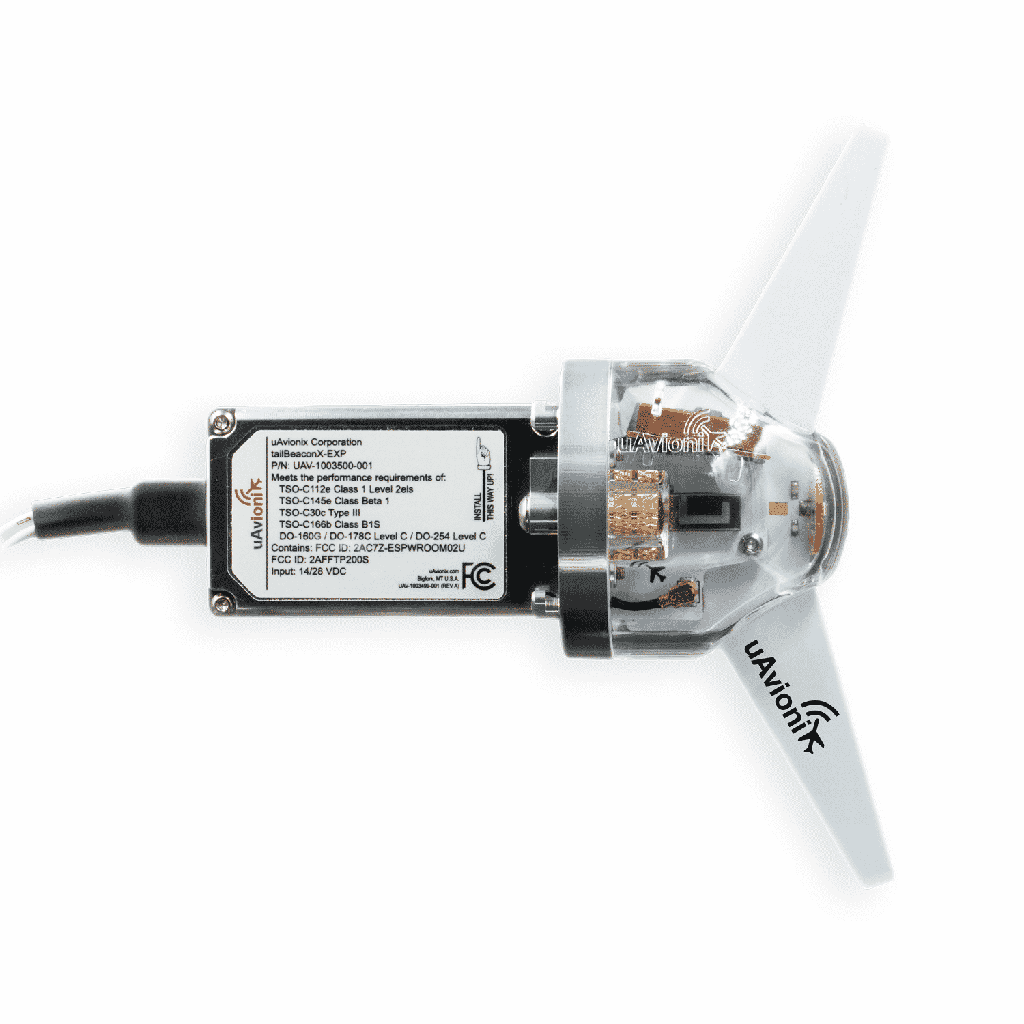

The uAvionix tailBeaconX TSO is a tail-mounted 1090 MHz Mode S ADS-B Out solution integrating a Mode S Extended Squitter transponder, WAAS GPS receiver and LED rear position light in one unit.

Designed as a remote transponder installation, tailBeaconX requires connection to a compatible control device with the required control, display, annunciation and pressure-altitude interfaces. Refer to the applicable uAvionix installation documentation for approved equipment interfaces, installation configuration and continuing-airworthiness requirements.

  • Manufacturer part number: UAX-90059-03
  • Integrated 1090 MHz Mode S ADS-B Out transponder
  • Integrated WAAS GPS receiver and antenna
  • Integrated LED rear position light
  • Suitable for installations using a compatible external transponder control device

Documentation: uAvionix tailBeaconX TSO User and Installation Guide, document UAV-1004270-001, Revision B. Where an STC installation is intended, consult the applicable approved model list, STC installation manual and relevant EASA validation documentation before installation.

Contact Us

Terms and Conditions

Share

Overview

The next era of global ADS-B. Compatible with space and ground-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and WAAS GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.

Transponder Redefined

    Mode S ADS-B OUT Transponder
  • Mode S + ADS-B OUT Transponder meets airspace requirements worldwide.
    • Integrated Certified GPS Receiver
  • tailBeaconX includes a certified SBAS GPS receiver and antenna. No additional GPS is required.
    • Aireon Compatible
  • The tailBeaconX with integrated dipole antenna is specifically designed to maximize performance when tracked by the Aireon space-based ADS-B satellite constellation.
    • LED Lighting
  • The integrated 20,000 hour rated LED position light ensures the tailBeaconX draws less power than your old incandescent bulb.

Think Outside the Airframe

tailBeaconX is the world’s first transponder designed as a rear position light replacement. The 1090MHz Mode S ADS-B OUT transponder satisfies the requirements for all existing and inevitable ADS-B regulations worldwide, especially those leveraging space-based ADS-B. Fly knowing no matter your destination, tailBeaconX will keep your aircraft connected.

World-Wide Coverage

tailBeaconX embraces the future, providing precision ADS-B data to the Aireon satellite network without the need for diversity antennas. When it comes to terra firma, tailBeaconX also exceeds the performance of traditional panel installed transponders that use belly mount antennas.

Less Ground Time - Easiest Install

tailBeaconX mounts in place of your existing rear position light. The GPS, space-based, and ground-based antennas are integrated in to the lens housing. No new holes or pentetration of pressure vessels are required making tailBeaconX the lowest-hassle easiest install period.

More Than A Mandate

The AV-20-E and AV-30-E have been upgraded to include transponder control functionality! The tailBeaconX combined with the AV-30-E or AV-20-E multiplies your cockpit functionality while future-proofing your ADS-B system to meet current and inevitable mandates worldwide.

Specifications

    Physical Specifications
  • Width: 42.53mm
  • Height: 110.38mm
  • Depth: 112.75mm
  • Weight: 3.5 oz (100 grams)
  • Operating Temperature Range: -45°C to +70°C
  • Maximum Pressure Altitude: 60,000ft
  • Input Voltage Range: 9 to 33 VDC
  • 14V Current: 0.5A Max
  • 28V Current: 0.25A Max
    • Mode S Transponder Specifications
  • Transmit Frequency: 1090 MHz
  • Transmit Power: 54dBm (250W)
  • Receive Frequency: 1030 MHz
  • ATCRBS Sensitivity: -74 dBm
  • Mode S Sensitivity: -74 dBm
    • Position Light Specifications
  • Color: Aviation White
  • Intensity: 20 candelas
    • Control Interface Specifications
  • Physical: RS232
  • Baudrate: 2400 bps 81N
  • Protocols: UCP, SL-70, STX165R

Control Head

Control head required. tailBeaconX-can be controlled by either an EFIS or the uAvionix AV-30-C
