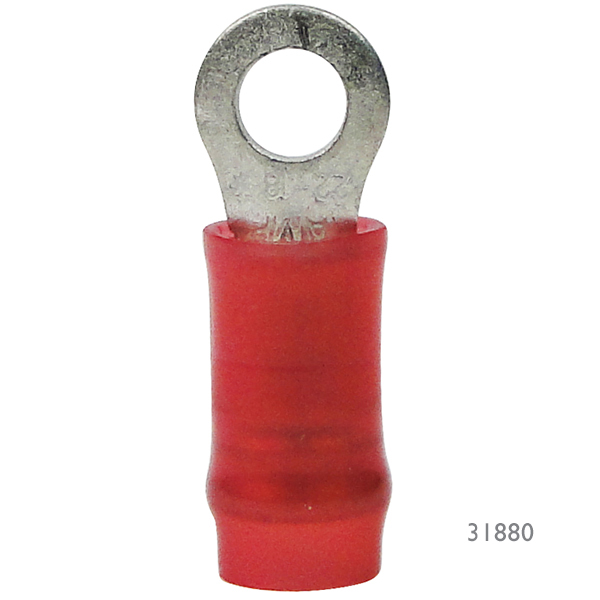

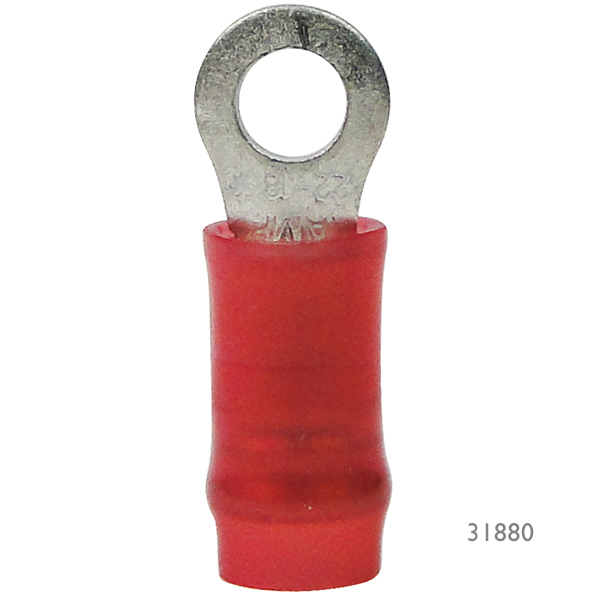

TE PIDG Ring Tongue Terminal 22-16 Awg .26-1.65MM .79MM 36152

https://www.roctexo.com/web/image/product.template/126705/image_1920?unique=e930546
Part numbers : RX1-11-18353 , 36152 , 11-18353
Unit of Measure: EA

0.26 EUR / EA 0.26 EUR 0.26 € excl. VAT

0.26 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
25 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 5,786 EA ready to ship on Thursday 2026-09-24
Order before 15:30 CET Tomorrow
Up to 14,971 EA ready to ship on Monday 2026-09-28
Order before 15:30 CET Tomorrow
75,184 EA available on request, fees apply
Special order from vendor stock.

TE Connectivity PIDG ring tongue terminal, manufacturer part number 36152. This straight, closed-ring terminal is designed for terminating 22–16 AWG (0.26–1.65 mm²) copper wire to an M3.5 / #6 stud connection.

  • Closed ring tongue terminal with straight orientation
  • Wire range: 22–16 AWG (0.26–1.65 mm²)
  • Stud size: M3.5 / #6; stud diameter 3.68 mm
  • Closed barrel with tin plating and insulation support
  • Partially insulated PIDG design
  • Tongue thickness: 0.79 mm
  • Overall length: 20.24 mm
  • Manufacturer voltage rating: 300 V
  • Manufacturer operating-temperature range: 0 to 105 °C

Suitable for electrical wiring work where the specified wire size and stud connection are required. Supplied as one piece (EA).

Manufacturer product information and documentation from TE Connectivity

Contact Us

Terms and Conditions

Share

Part No.AWG SizeStud Size
3615222-166

Overview

Each insulated PIDG terminal consists of a tin plated copper body, a tin plated copper wire support sleeve and a color-coded insulation sleeve.
