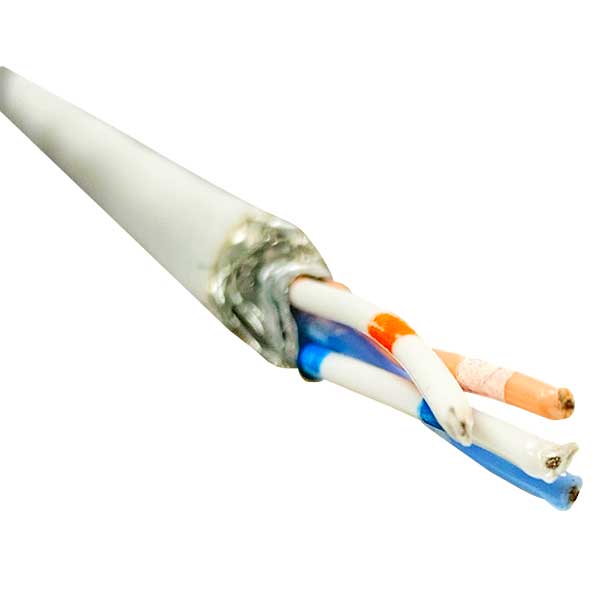

392404 24Awg 2 Pr Cat 5 Ethernet Cable

https://www.roctexo.com/web/image/product.template/96708/image_1920?unique=6b4fee8
Part numbers : RX1-11-18304 , 392404 , 11-18304
Unit of Measure: FT

6.00 EUR / FT 6.0 EUR 6.00 € excl. VAT

6.00 EUR / FT excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1,064 FT ready to ship on Monday 2026-08-17
Order before 17:00 CET Tomorrow
Up to 1,846 FT ready to ship on Thursday 2026-08-20
Order before 17:00 CET Tomorrow
552 FT available on request, fees apply
Special order from vendor stock.

P/N 392404 is a 24 AWG, two-pair Category 5 data bus cable for ARINC 646, LAN and 10 Base-T applications. Its double-shielded construction combines an aluminium/Mylar foil shield with a 38 AWG tin-plated copper braid, helping support data-bus installations where shielding performance is required.

  • 4 conductors arranged as 2 twisted pairs
  • 24 AWG tin-plated copper conductors
  • High-temperature fluoropolymer insulation and white, laser-markable fluoropolymer jacket
  • Pair identification: white/blue with blue/white; white/orange with orange/white
  • Nominal impedance: 100 Ω per pair
  • Nominal outside diameter: approximately 5.9 mm
  • Nominal minimum bend radius: approximately 30 mm
  • Operating temperature range: −55 °C to +200 °C
  • Listed as Skydrol resistant

Suitable for procurement by the foot where the specified 392404 construction and electrical characteristics are required. Refer to the applicable installation data and approved maintenance documentation when selecting cable for a particular aircraft or system.

Documentation: Data sheet available for P/N 392404.

Contact Us

Terms and Conditions

Share

Overview

Carlisle ARINC 646 Cat 5 Data Bus Cable.
    Applications
  • ARINC 646, Cat 5, LAN, 10 Base T
    • 4 Conductors
    • 2 Twisted Pairs
    • Conductors: 24 AWG tin plated copper
    • Insulation: High temperature flouropolymer
      • Color Code:
    • Pair 1: White/Blue Blue/White
    • Pair 2: White/Orange Orange/White
      • Overall Cable:
    • Shield 1: Aluminum/Mylar foil
    • Shield 2: 38 AWG tin plated copper braid
    • Jacket: White high temperature flouropolymer (laser markable)
      • Physical Characteristics
    • Outer Diameter: 0.234 inches nominal
    • Bend Radius: 1.2 inches nominal
    • Weight: 3.0 lbs/100 feet nominal
    • Temperature Range: -55° to +200° C
    • Skydrol Resistant: Yes
      • Electrical Characteristics (each pair)
    • Impedance: 100 Ohms nominal
    • Capacitance: 12.4 pF/ft maximum
    • Velocity of Propogation: 78% nominal
    • Skew: 12.8 ns/100 ft BUS
    • Attenuation: 10 MHz 2.1 dB/100 ft nominal
