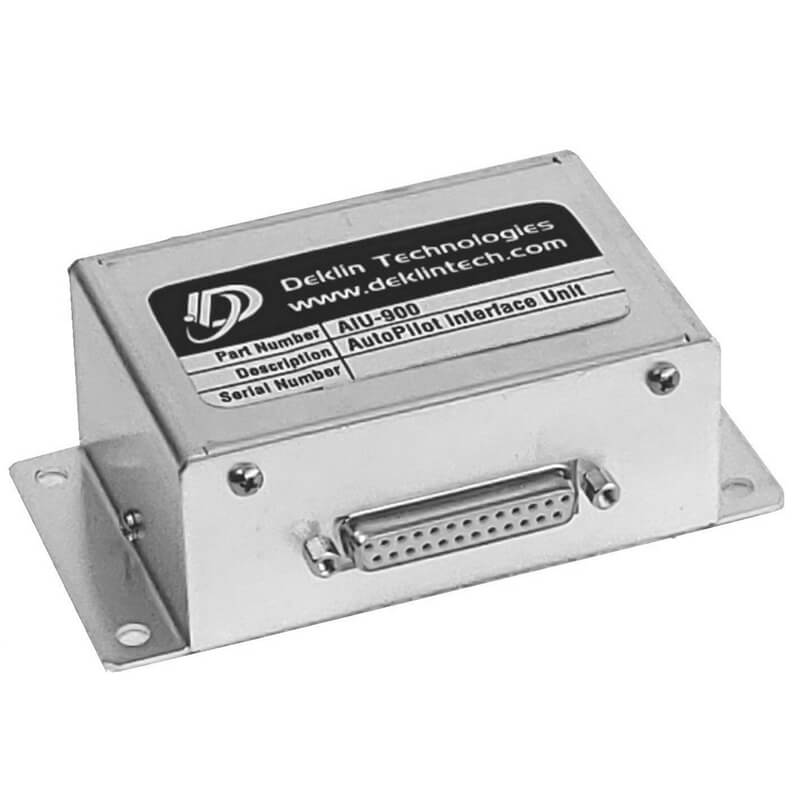

Deklin Autopilot Interface Unit Aspen

Deklin Autopilot Interface Unit Aspen

https://www.roctexo.com/web/image/product.template/70140/image_1920?unique=73c6f5b

Part Number(s): 11-17575, AIU-900B

257.40 € 257.4 EUR 257.40 € Tax Excluded

2,814.13 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-11-17575

Overview

The AIU-900 is a pre-assembled autopilot interface unit following the interconnect specifications and component requirements recommended by the manufacturers of certain PFD systems when interfaced with the existing 1C388 series autopilot couplers. This unit is intended to provide a convenient solution in a single device with multiple variations for installers to use in place of producing the same circuits from discrete components as specific in PFD installation manuals.

For use with Aspen or Garmin PFD’s Supports 1C388 / 1C388M / 1C388-2 / 1C388-3.

These will also work with the Garmin G5 unit when interfaced to the 1C388 couplers

NOTE: Does NOT include install kit (AIU-900IK) (See P/N: 11-17576).

Features

  • EFD1000PRO PFD to Century 1C388 series autopilot couplers.
  • G500 PFD to Century 1C388 series autopilot couplers.
  • Small size
  • D-Sub connector
  • Easily mounted

Specifications

  • Dimensions: 4.60 x 2.56 x 1.50 in, (116.5 x 65 x 1.5 mm) without mating connector
  • Weight: 0.38 lb (0.17 kg)
  • Connectors: 25-pin female D-sub connector
  • Mounting: Bulkhead, four 8/32 screws
  • Input Voltage: Not Applicable
  • Current: Not Applicable
  • Case Material: 5052H32 aluminum chassis and cover

Component List

AIU-900A For Garmin

  • Capacitors: 0.047uF metalized polyester, 100V
  • Inductor, Choke: 18 mH
  • Resistors: 10.0 KÙ, 0.25W, 1%
  • Transformers: TY-141P (x3)

AIU-900B For Aspen

  • Capacitors: 0.027uF, 0.047uF Metalized Polyester, 100V
  • Inductor, Choke: 18 mH, 27mH
  • Resistors: 10.0 kOhm, 100.0 kOhm 0.25W, 1%
  • Trim Pots: 5 kOhm, 200 kOhm Single Turn, Side Adj
  • Transformers: TY-141P (x1), TY-145P (x2)


In The Box

  • 1 - AIU-900
