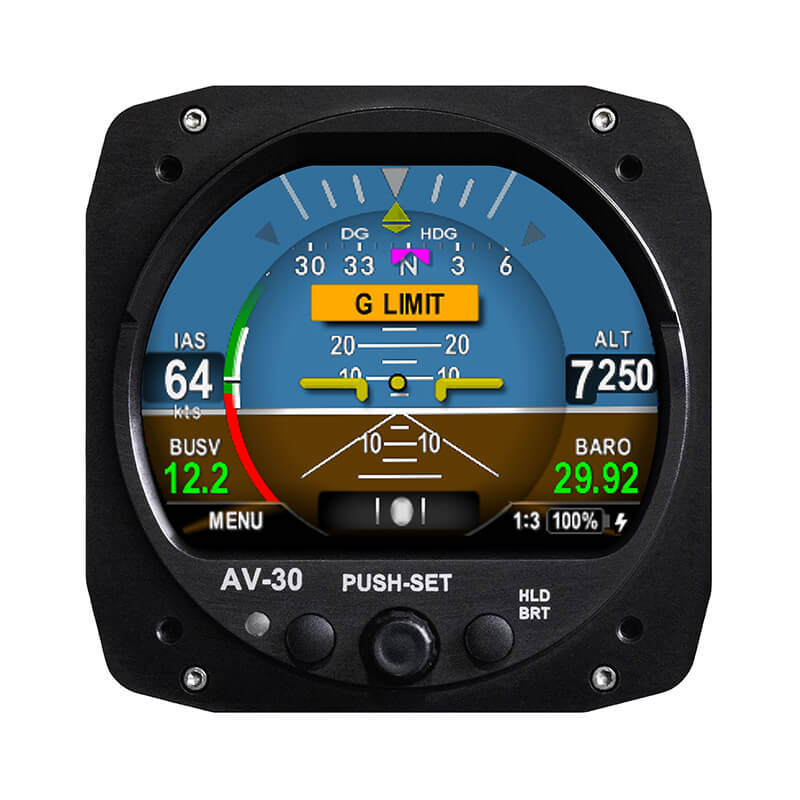

Uavionix Av-30-E Experimental Primary Flight Display

Overview

Features

• 12-In-1 Functionality:
• Primary Attitude
• Primary Slip
• Primary Direction Indication
• Probeless Angle of Attack (AOA)
• Indicated Airspeed (KTS / MPH)
• Altitude / Vertical Trend / Alerter
• +8 / -8 G-Meter
• OAT / TAS / Density Altitude (Requires OAT Probe - sold separately)
• Bus Voltage
• GPS Navigational Data Overlay (Requires GPS Navigator Interface)
• GPS HSI / 360 Rose / Arc Map Mode
• Customizable Colors, Fonts, & Layout
• Audio Alerts (AOA, G, Roll Limits)

Specifications

• Input Voltage Nominal: +10 to +32 VDC
• Input Voltage Max: +60 VDC
• Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
• Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
• Required Circuit Breaker: 2 Amp
• Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C

• Physical Attributes
• • Mounting Configuration: 3 1/8” Round Instrument Hole
  • Dimensions wo/Connector: 3.38 x 3.38 x 1.6 Inches
  • Weight: 0.50 Lbs.
  • Electrical Connector: 15 Pin Male D-Sub
  • Pneumatic Connectors: ¼” OD Quick Connect
  • Mounting: (4X) #6-32 Machine Screws
  • Case Material: Billet Aluminum
  •

• Environmental
• • Operating Temp: -20°C to +55°C
  • Storage Temp (48 Hrs): -30°C to +80°C
  • Humidity (48 Hrs): 90% RH
  •

• Display
• • Diagonal Size: 3” Circular
  • Contrast Ratio (Typical): 500
  • Brightness (Typical): 1000 cd/m2
  • Viewing Angle Left/Right:60°
  • Viewing Angle Up: 45°
  • Viewing Angle Down: 10°
  • Backlight Lifetime (Typical): 50,000 Hrs
  •


Benefits

Cutting Edge Technology Without the Cutting

• AV-30 fits in your existing 3” panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel.

Probeless Angle of Attack (AOA) - Avoid Stalls

• The AV-30 alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.

In The Box

• AV-30 Experimental
• Harness Kit (Serial connectors/pins/case housing/grounding strap, etc. Not assembled)
• Install hardware
