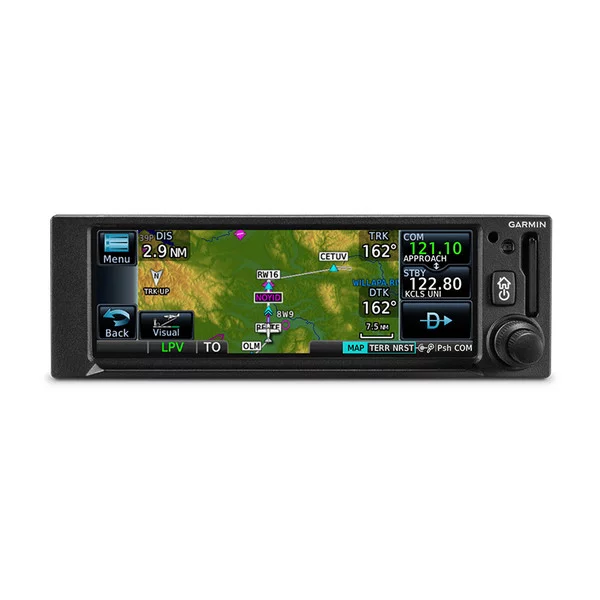

Garmin GNC 355A GA 35 Americas Kit STC

The Garmin GNC 355A Americas Kit is a panel-mounted GPS/COM navigator package for certified installations under the applicable Garmin STC. Supplied under manufacturer part number 010-02232-61, the kit is identified as including the Garmin GA 35 GPS/WAAS antenna and STC product registration.

The GNC 355A combines touchscreen GPS navigation with an integrated VHF COM transceiver. Its 8.33 kHz channel spacing makes it suited to radio-channel requirements used in European operations, subject to the approved installation and applicable operational regulations.

• Garmin GNC 355A GPS/COM navigator
• GA 35 GPS/WAAS antenna
• WAAS/SBAS GPS navigation capability, including LPV approach capability when installed with the required approved interfaces
• Integrated VHF COM transceiver with 8.33 kHz channel spacing
• Touchscreen display with physical rotary controls
• Moving-map, flight-plan, procedure and waypoint functions
• Built-in Bluetooth connectivity for compatible portable-device functions

For installation planning, maintenance and operational use, consult the current Garmin installation documentation, approved model list/STC data, pilot’s guide and aircraft-specific approval requirements.

Manufacturer part number: 010-02232-61

Roctexo part number: RX1-11-17441
