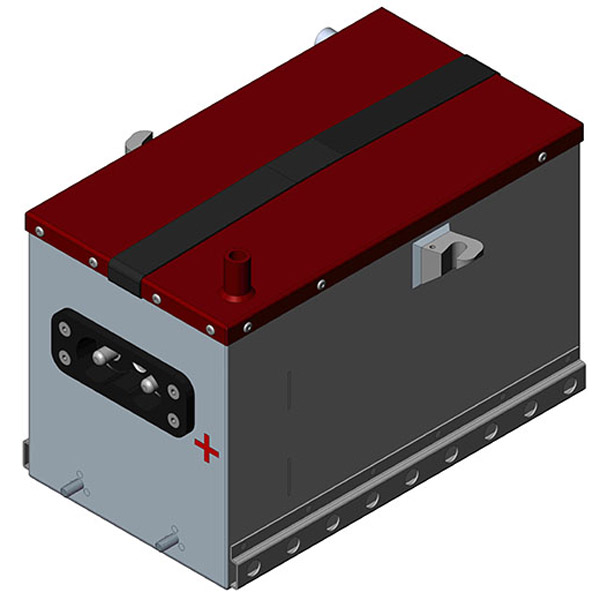

Concorde Battery RG-292-102

The Concorde Battery RG-292-102 is a Platinum Series® 24 V, 17 Ah valve-regulated lead-acid (VRLA) aircraft battery. Built using absorbed glass mat (AGM) technology, it is designed by Concorde for engine starting and emergency-power duties.

The battery incorporates two series-connected 12 V monoblocks in a fuse-coated aluminium container with integrated hold-down provision and vent tubes. The electrolyte is absorbed within the plates and separators, with no free electrolyte.

• Manufacturer part number: RG-292-102
• Nominal voltage: 24 V
• Rated capacity (C1): 17 Ah
• Battery type: VRLA, AGM, non-spillable
• Connector: MS3509
• Approximate dimensions: 285 × 173 × 186 mm
• Maximum battery mass: 19.7 kg

Concorde’s Declaration of Design Performance identifies this battery as designed for engine starting and emergency power, and documents performance to the requirements of RTCA DO-293A and IEC 60952-1. Confirm part-number, connector, physical installation and applicable approved maintenance data before installation.

Documentation: Concorde RG-292-102 Declaration of Design Performance (PDF)
