Image for illustration only. It may show a product series rather than the exact product offered.

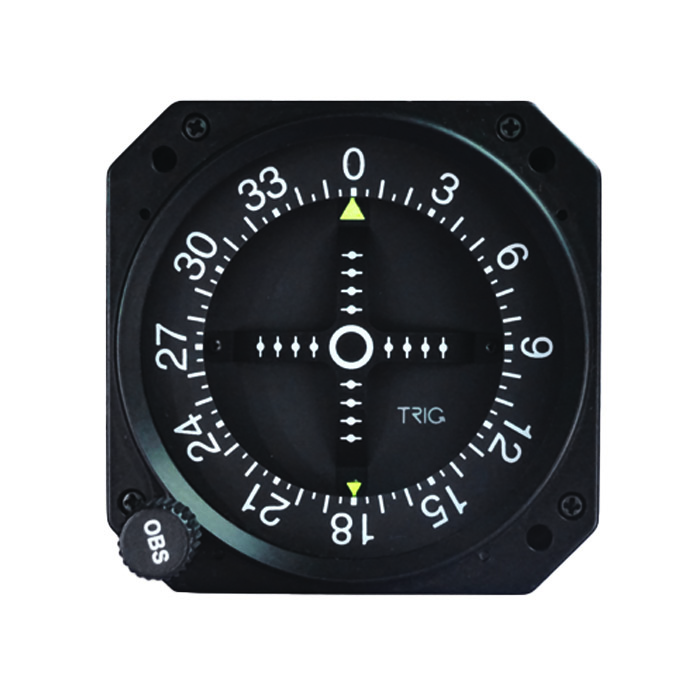

Trig TI106 Course Deviation Indicator CDI

Part numbers : RX1-11-16843 , 01913-00 , 11-16843

Unit of Measure: EA

2823.53 EUR / EA 2823.53 EUR 2,823.53 € excl. VAT

2823.53 EUR / EA excl. VAT

This combination does not exist.

3 EA available on request, inbound freight fee of 60 EUR applies

Special order from vendor stock.

Add to cart

The Trig TI106 is a 76 mm Course Deviation Indicator (CDI) for panel-mounted navigation displays. Manufacturer part number: 01913-00.

The TI106 is designed to present VOR, GPS, localizer and glideslope information when connected to suitable navigation equipment. Solid-state actuators provide navigation indications, while LED lighting illuminates the dial, pointers and annunciators. Trig identifies the TI106 as ideally matched to its TX56 and TX57 Nav/Com units.

Course Deviation Indicator with 76 mm front-panel format
EASA ETSO C34e, C36e and 2C40c; FAA TSO-C34e, C36e and C40c
RTCA DO-160B/G environmental qualification
12–32 VDC supply; typical current consumption 0.2 A
Operating temperature: −55 °C to +70 °C
Approximate dimensions: 83 × 83 × 121 mm
Weight: 0.59 kg

Please confirm interface requirements, installation configuration and applicable aircraft approval requirements before installation.

Documentation: Trig TI106 CDI Installation Manual (02179-00).
