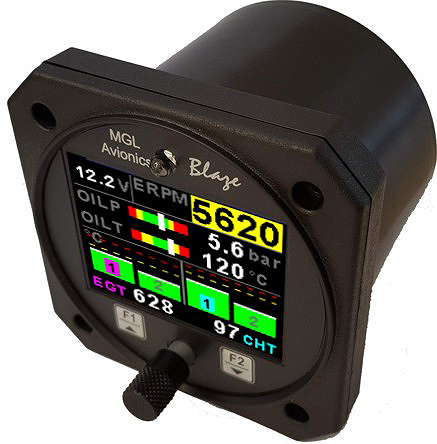

MGL Color Universal Engine Monitor (Blaze Series)

The MGL Avionics Blaze EMS-2 is a compact universal engine-monitoring instrument in the Blaze Series. Designed for a standard 80 mm (3 1/8 in) instrument position, it combines configurable engine data presentation with a high-resolution, sunlight-readable colour display.

The instrument uses a 66 mm (2.6 in) 320 × 240 IPS LCD with wide viewing angle and adjustable LED backlighting. A rotary control and two independent buttons provide direct menu navigation and operating control.

• Manufacturer part number: BLAZE-EMS-2
• Also identified as: EMS-2
• Standard 80 mm (3 1/8 in) aircraft instrument enclosure; suitable for front or rear mounting
• 66 mm (2.6 in) 320 × 240 sunlight-readable IPS colour display
• 8–30 V DC supply input range
• Built-in alarm output and RS232 serial output
• Up to four thermocouple channels using the instrument’s internal electronics
• Supports up to 12 thermocouple channels when used with an optional MGL RDAC remote data-acquisition unit via CAN bus
• Field-upgradeable firmware via the RS232 connection

The EMS-2 display automatically arranges enabled engine parameters to make effective use of the screen area. Configuration, sensor selection and installation requirements should be verified against the applicable aircraft and engine documentation before installation.

Documentation: MGL Avionics Blaze EMS-2 Operating Manual
