Whelen OR36R1N Red LED Beacon 14VDC 2.6 Upper

Whelen OR36R1N Red LED Beacon 14VDC 2.6 Upper

https://www.roctexo.com/web/image/product.template/9267/image_1920?unique=224f3b1
Part numbers : RX1-11-16637 , 01-0772010-50 , 11-16637
Unit of Measure: EA

627.78 EUR / EA 627.78 EUR 627.78 € excl. VAT

627.78 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 35 EA ready to ship on Monday 2026-08-17
Order before 17:00 CET Tomorrow
Up to 59 EA ready to ship on Thursday 2026-08-20
Order before 17:00 CET Tomorrow
63 EA available on request, fees apply
Special order from vendor stock.

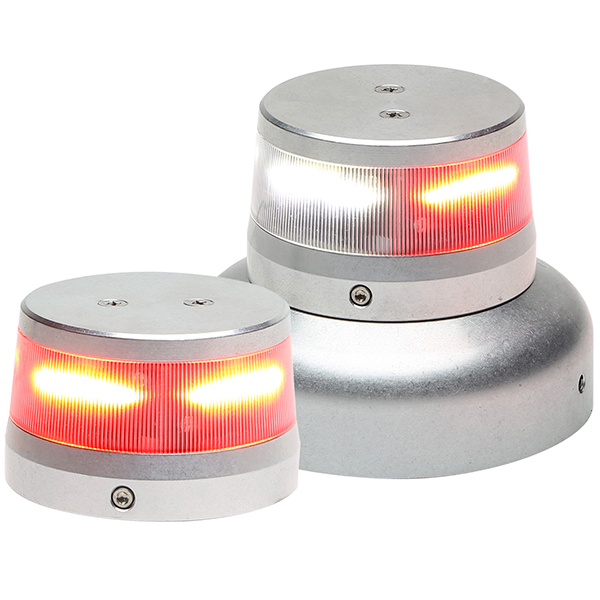

The Whelen OR36R1N is an Orion 360 red LED anti-collision beacon for 14 VDC aircraft electrical systems. This upper-installation assembly has a 66 mm base and is identified by manufacturer part number 01-0772010-50.

Whelen describes the Orion 360 range as a low-profile LED beacon series intended as an update for legacy round beacon installations. Confirm mounting arrangement, electrical connection and airworthiness suitability for the individual aircraft before installation.

  • Model: OR36R1N
  • Manufacturer: Whelen Aerospace Technologies
  • Manufacturer part number: 01-0772010-50
  • Light output: Red LED
  • Nominal operating voltage: 14 VDC
  • Base size: 66 mm (2.6 in)
  • Average input current: 0.53 A
  • Pulse current: 2.8 A
  • Flash rate: 45 ± 4 flashes per minute
  • FAA TSO-C96a Class III approved

Installation and continuing-airworthiness information is available in Whelen’s OR36R1N / OR36S1N Installation Guide (14B91). Installation approval and compliance with applicable airworthiness requirements remain the responsibility of the installer and aircraft operator.
