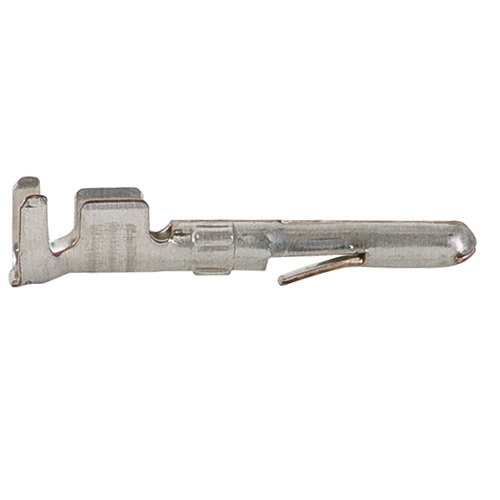

TE Mate-N-Lok Male Pin 24-18Awg 60618-1

Image for illustration only. It may show a product series rather than the exact product offered.

TE Mate-N-Lok Male Pin 24-18Awg 60618-1

https://www.roctexo.com/web/image/product.template/36790/image_1920?unique=3b60d9c
Part numbers : RX1-11-16605 , 60618-1 , 11-16605
Unit of Measure: EA

0.18 EUR / EA 0.18 EUR 0.18 € excl. VAT

0.18 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1,009 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 2,029 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
2,924 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

TE Connectivity Commercial MATE-N-LOK pin contact, manufacturer part number 60618-1. This loose-piece male contact is designed for crimp termination to stranded wire and for installation in Commercial MATE-N-LOK connector housings.

  • Pin contact with brass base material and tin plating
  • Open-barrel crimp termination for 0.2–0.82 mm² stranded wire (24–18 AWG)
  • Locking-lance retention within the connector housing
  • Rated operating voltage: 250 VAC
  • Maximum contact current rating: 15 A
  • Operating temperature range: -55 °C to +105 °C

Confirm the applicable housing, wire insulation diameter, crimp tooling and installation requirements against the manufacturer documentation before use.

Manufacturer part number: 60618-1

Manufacturer product information and documentation
