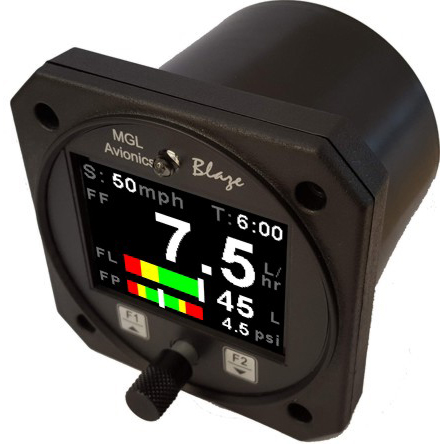

MGL Color Fuel Computer (Blaze Series)

The MGL Avionics Blaze FF-5 is an 80 mm colour-display fuel computer designed for monitoring fuel-related information in single- or dual-tank installations. Its configurable input options allow the instrument to be set up around installed fuel-flow senders, fuel-level senders and a fuel-pressure sender.

Where fuel-flow data is available, the FF-5 can calculate fuel quantity from consumption. It also supports differential fuel-flow calculations for fuel-return systems and can be used with fuel-injector systems. A multi-point calibration facility supports fuel-level sender calibration, including installations with irregular tank shapes.

• Manufacturer part numbers: BLAZE-FF-5; FF-5
• Sunlight-readable colour display
• Supports single or dual fuel tanks
• Configurable for one or two fuel-flow senders and fuel-level senders
• Input support for one fuel-pressure sender
• Fuel-return and fuel-injector system capability
• RS232 NMEA GPS input for ground-speed-based range calculations
• CAN-bus interface capability for an external MGL RDAC remote data-acquisition unit
• External alarm output

Refer to the manufacturer’s Blaze FF-5 Operating Manual for installation, configuration, sender calibration and operating instructions.
