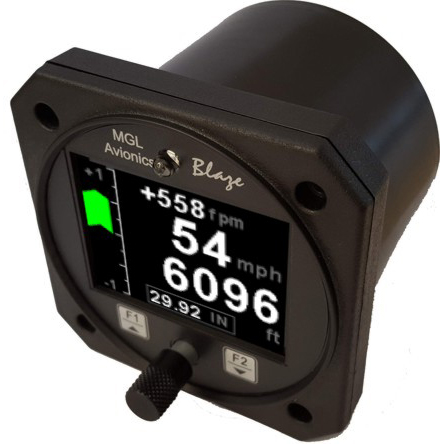

MGL Color Airspeed Indicator/Vsi (Blaze Series)

The MGL Avionics Blaze ASV-2 is a compact colour display instrument combining altitude, airspeed (ASI) and vertical-speed (VSI) indication in a standard 80 mm (3 1/8 in) instrument enclosure.

Its internal digital altitude sensor supports configurable altitude and local-pressure units, while airspeed may be displayed in mph, km/h or knots. The VSI may be displayed in ft/min or m/s. The instrument uses pitot pressure for airspeed measurement and provides a static-port connection.

• Sunlight-readable colour display with backlighting
• Altimeter, airspeed and wide-range VSI functions in one instrument
• User-adjustable VSI and airspeed sensitivity calibration after installation
• Programmable Vs and Vne airspeed alarm output
• RS-232 serial output for compatible serial-input transponders
• Encoder test function, flight timer and maximum airspeed memory
• Parallel Gillham-code interface when used with the MGL Avionics CNV-ALT converter
• 8–30 V DC supply input with reverse-polarity and over-voltage protection

Part numbers: ASV-2; BLAZE-ASV-2.

For installation, configuration and operating limitations, consult the manufacturer’s Blaze ASV-2 operating manual.
