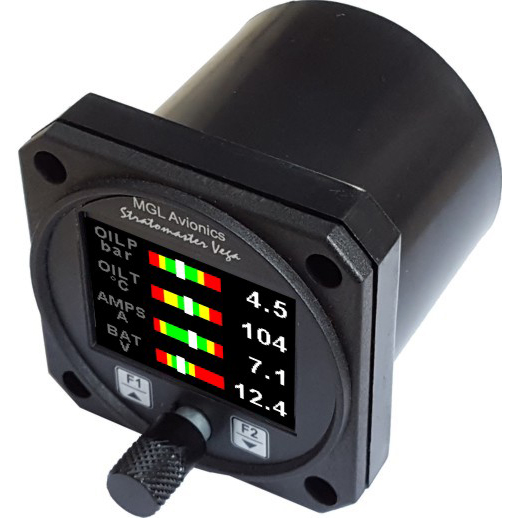

MGL Color Temperature/Pressure/Volts Display (Vega Series)

The MGL Avionics Vega TP-3 is a compact four-channel universal analogue-input colour display instrument for monitoring pressure, temperature, current or voltage inputs. Each channel can be configured individually and presented in numeric, horizontal bar-graph or vertical bar-graph formats.

Designed in the Vega 57 mm panel format, the TP-3 combines a sunlight-readable colour display with rotary and push-button controls for instrument setup and operation. It supports configurable low and high alarms for each analogue channel, with an external alarm output, and stores recorded minimum and maximum values in permanent memory.

• Four universal analogue inputs for pressure, temperature, current or voltage
• Configurable numeric and bar-graph display formats
• Pressure and temperature sender support, including programmable custom input curves
• Selectable temperature units in °C or °F and pressure units in bar or psi
• CAN bus interface for connection to an MGL Avionics RDAC remote data-acquisition computer
• 57 mm (2¼ in) aircraft-instrument enclosure; suitable for front or rear mounting

Manufacturer part numbers: TP-3; VEGA-TP-3.

Documentation: MGL Avionics Vega TP-3 Operating Manual.
