Appareo Stratus Esg Certified Transponder With 3I Kit

Image for illustration only. It may show a product series rather than the exact product offered.

Appareo Stratus Esg Certified Transponder With 3I Kit

https://www.roctexo.com/web/image/product.template/114586/image_1920?unique=8a1485a
Part numbers : RX1-11-16556 , 153010-000050-62 , 11-16556
Unit of Measure: EA

3599.95 EUR / EA 3599.95 EUR 3,599.95 € excl. VAT

3599.95 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Thursday 2026-10-01
Order before 16:00 CET on Tuesday 2026-09-29
Up to 3 EA ready to ship on Monday 2026-10-05
Order before 16:00 CET on Tuesday 2026-09-29
2 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

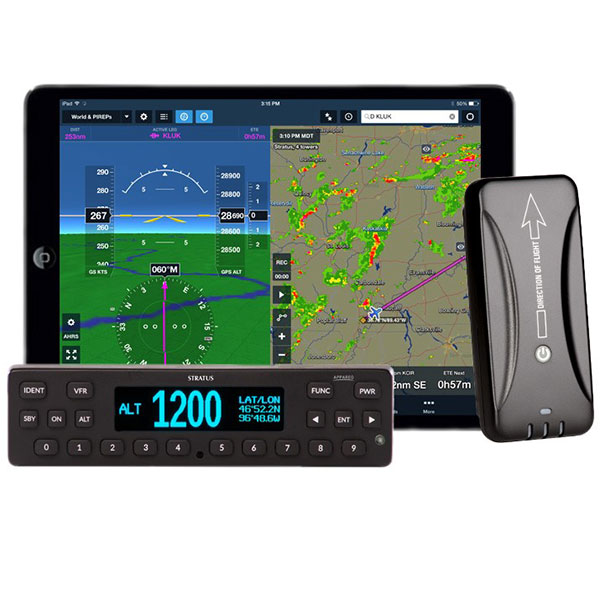

The Appareo Stratus ESG is a panel-mounted 1090ES Mode S extended-squitter transponder with an integrated WAAS GPS position source. This configuration is supplied with the Stratus 3i kit, adding an ADS-B In receiver intended to connect with the Stratus ESG.

Manufacturer part number: 153010-000050-62

  • 1090ES Mode S extended-squitter ADS-B Out transponder
  • Integrated WAAS GPS
  • OLED display with push-button operation
  • Pressure-altitude monitoring capability
  • 9 to 36 VDC input; typical power consumption 15 W
  • Approximate installed dimensions: 43 mm bezel height, 162 mm bezel width and 273 mm depth to connector backshell
  • Approximate unit weight including rack and connectors: 1.5 kg

The included Stratus 3i provides ADS-B In reception and backup AHRS functionality when connected to the Stratus ESG. It is intended for use with ForeFlight on an iPad and is not EASA/FAA approved.

Installation and configuration must be completed in accordance with applicable approved installation data, aircraft requirements and local aviation regulations. Please confirm suitability for the intended aircraft and operating environment before purchase.
