RAMI AV-289 Transponder/Miltiband Flightcell Antenna TSO

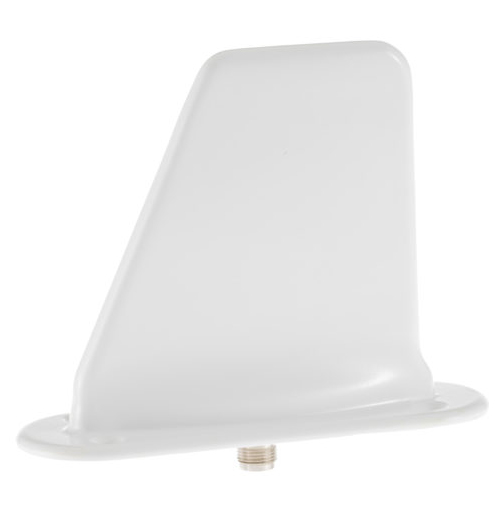

The RAMI AV-289 is a broadband blade antenna designed for transponder operation and additional cellular, 4G, GSM, PCS, Wi-Fi and UMTS applications. It provides vertical polarisation, an omnidirectional pattern and a nominal 50-ohm impedance.

For the transponder function, the AV-289 operates in the 1030–1090 MHz band and is FAA TSO-C74d qualified as an incomplete system. The 700–1029 MHz and 1091–2700 MHz ranges are specified by RAMI as non-TSO functions. Aircraft-specific installation approval remains the responsibility of the installer and operator under the applicable airworthiness requirements.

• Manufacturer part number: AV-289
• Frequency coverage: 700–2700 MHz
• Transponder band: 1030–1090 MHz
• Connector: TNC female
• RF power handling: 100 W continuous, 1,000 W peak
• Construction: polyarylamide plastic shell with 6061-T6 aluminium base
• Supplied with O-ring and mounting hardware
• Designed for operation up to Mach 1 and 16,800 m altitude

Manufacturer documentation: AV-289 data sheet, installation instructions and TSO authorization letter.
