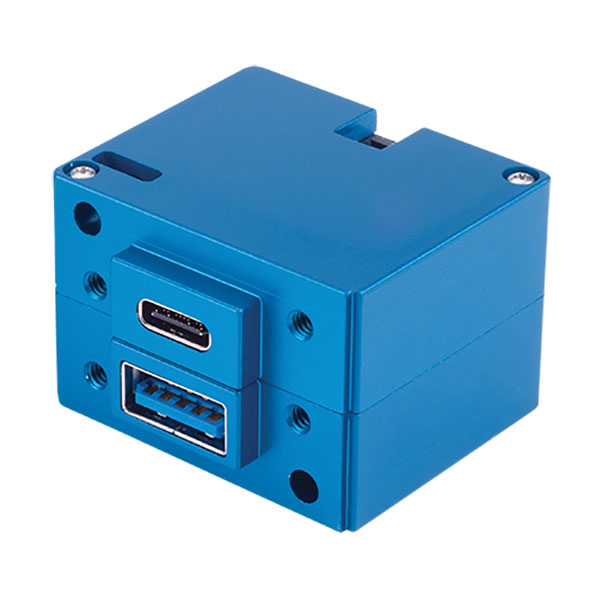

True Blue Power USB Charging Port TA202 6430202-12

The True Blue Power TA202, manufacturer part number 6430202-12, is a dual USB charging port for aircraft cabin, cockpit and in-seat power installations. This illuminated configuration combines one USB Type-A and one USB Type-C outlet with a bottom power connector.

Designed for 10–32 VDC electrical systems, the TA202 provides 5 VDC output at up to 3.0 A (15 W) per port, allowing two connected USB devices to be charged simultaneously at full rated output. The compact unit incorporates protection against short circuit, over-current and over-temperature conditions, without requiring an external power converter.

• Manufacturer part number: 6430202-12
• Series: True Blue Power TA202 High Power USB Charging Port
• Ports: dual USB Type-A and USB Type-C
• Illuminated outlets
• Power input: 10–32 VDC
• USB output: 5 VDC ±0.25 V; up to 3.0 A / 15 W per port
• Power connector location: bottom
• FAA TSO-C71 certified; RTCA DO-160G qualified

For installation and operating information, refer to the True Blue Power TA202 Series Installation Manual and Operating Instructions, Manual 9017899.
