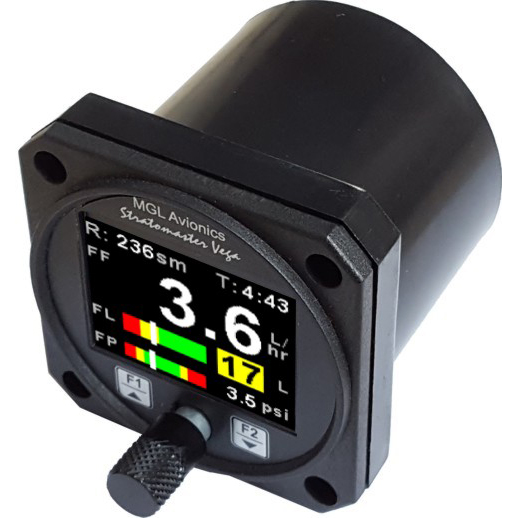

MGL Stratomaster Vega 2-1/4 Fuel Computer

The MGL Stratomaster Vega FF-4 is a compact 57 mm (2¼ in) colour-display fuel computer designed to monitor fuel-related information in single- or dual-tank installations.

Depending on the installed senders and configuration, the FF-4 can work with fuel-flow and fuel-level inputs, as well as a single fuel-pressure sender. Where only fuel-flow input is used, fuel level can be calculated from fuel consumption. Differential fuel-flow calculations are supported for fuel-return systems, and fuel-injector systems can also be accommodated.

• 57 mm (2¼ in) sunlight-readable colour display
• Supports single- or dual-tank fuel monitoring
• Interfaces with one or two fuel-flow senders and fuel-level senders
• Multi-point fuel-level calibration for non-linear or irregularly shaped tanks
• Configurable fuel-flow sender K-factor for calibration
• RS-232 NMEA GPS input for ground-speed-based fuel-range calculations
• CAN-bus interface for connection to an external MGL RDAC remote data-acquisition unit
• External alarm output

Manufacturer part numbers: FF-4, VEGA-FF-4.

Refer to the MGL Avionics Vega FF-4 operating manual for installation requirements, wiring, supported sender types and configuration guidance.
