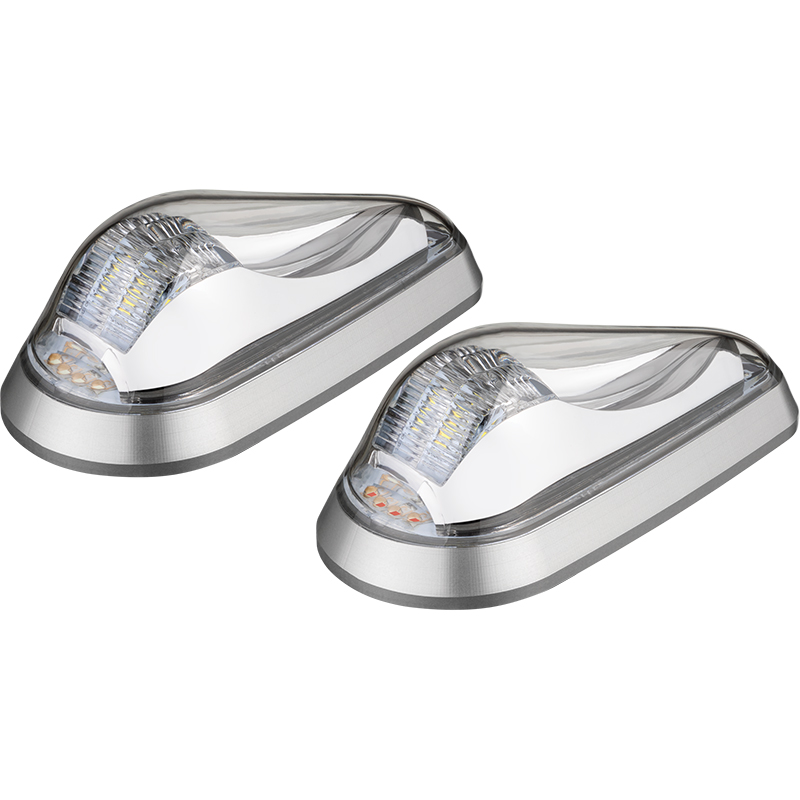

AeroLEDs Pulsar 650 Wingtip Forward Position / Anti-Collision Light Right Certified (28V)

The AeroLEDs Pulsar 650, manufacturer part number 11-1280-B-24-R, is a certified LED wingtip assembly combining a green forward position light and anti-collision light for 28 VDC aircraft electrical systems. This right-hand configuration is part of the Pulsar 650 range, formerly known as the Pulsar NS.

Its compact, low-drag housing uses a standard mounting footprint and includes AeroLEDs’ patented three-position mounting bracket. The LED design combines position and anti-collision functions in one unit and does not require an external power supply.

• Configuration: right-hand green forward position / anti-collision wingtip light
• Nominal system voltage: 28 VDC
• Manufacturer part number: 11-1280-B-24-R
• Current draw per light at 28 VDC: 0.4 A position light; 0.4 A anti-collision average; 3.05 A anti-collision peak
• Approximate dimensions: 102 × 48 × 38 mm (L × W × D)
• Approximate unit weight: 0.11 kg
• Manufacturer-stated approval basis: FAA TSOA/STC; TSO-C30c Type I and II, and TSO-C96a Class II

For installation, maintenance and continuing-airworthiness requirements, refer to the current AeroLEDs Pulsar 650 installation instructions, installation template, datasheet and applicable approved installation data.
