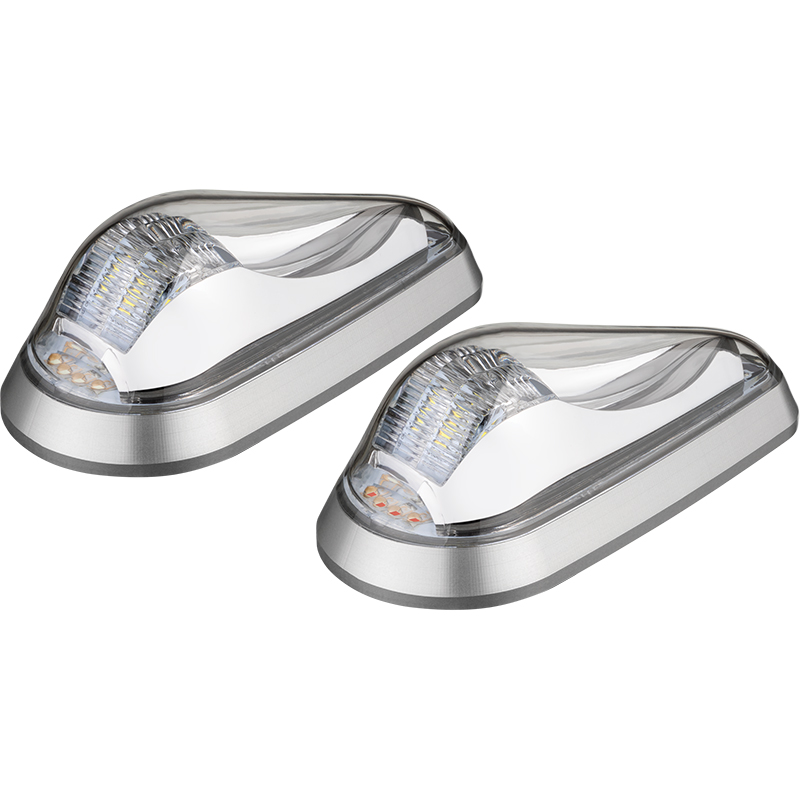

AeroLEDs Pulsar 650 Wingtip Forward Position / Anti-Collision Light Right Certified (14V)

The AeroLEDs Pulsar 650, part number 11-1280-B-12-R, is a certified right-hand wingtip assembly combining a green forward position light with a white anti-collision strobe. This 14 VDC LED unit provides two lighting functions in one compact, aerodynamic housing.

The Pulsar 650 features a low-drag profile, an industry-standard three-position mounting screw pattern and a patented three-position mounting bracket. The manufacturer states that no external power supply is required and that the anti-collision function can be synchronised in multi-light installations.

• Manufacturer part number: 11-1280-B-12-R
• Configuration: right-hand green position light with white anti-collision strobe
• Electrical system: 14 VDC
• Current draw: position light 0.8 A; anti-collision light 0.65 A average / 4.9 A peak
• Approximate dimensions: 102 × 48 × 38 mm (length × width × depth)
• Supplied with patented three-position mounting bracket
• Manufacturer-listed approval status: FAA TSOA/STC

Please consult the applicable approved aircraft data and the manufacturer installation instructions before installation.

Documentation

• AeroLEDs Pulsar 650/660 Certified Installation Instructions
• AeroLEDs Pulsar 650 Certified Datasheet
