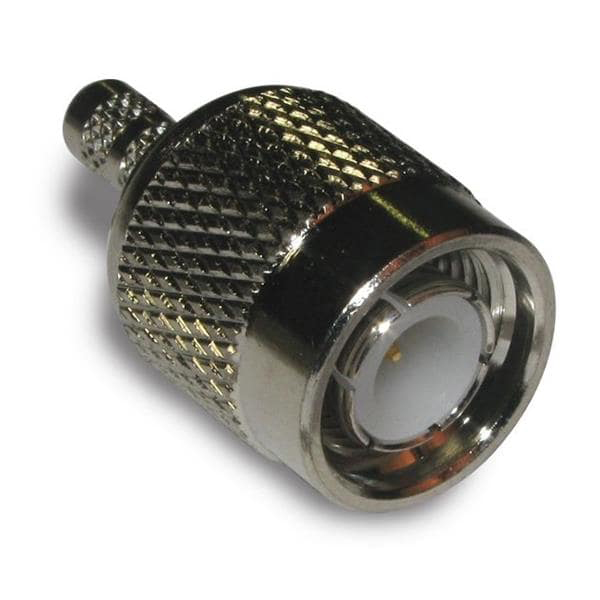

Amphenol 122372 TNC Male Rg 400

Amphenol 122372 TNC Male Rg 400

https://www.roctexo.com/web/image/product.template/107022/image_1920?unique=3df0ede
Part numbers : RX1-11-15369 , 122372 , 11-15369
Unit of Measure: EA

3.14 EUR / EA 3.14 EUR 3.14 € Tax Excluded

3.14 EUR / EA Tax Excluded

Not Available For Sale

This combination does not exist.

Availability
9 EA ready to ship Tomorrow
Order before 14:00 CET Tomorrow
Up to 1,277 EA ready to ship on Monday 2026-07-20
Order before 14:00 CET Tomorrow
Up to 1,590 EA ready to ship on Thursday 2026-07-23
Order before 14:00 CET Tomorrow
2,563 EA available on request, fees apply
Special order from vendor stock.
Contact Us

Terms and Conditions

Share

Overview

RF Connectors / Coaxial Connectors TNC STRAIGHT PLUG STANDARD CABLE.

Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory.

Specifications

  • Product Category: RF Connectors / Coaxial Connectors
  • Manufacturer: Amphenol
  • RoHS: RoHS Compliant By Exemption Details
  • Product: Connectors
  • RF Series: TNC
  • Gender: Plug
  • Impedance: 50 Ohms
  • Maximum Frequency: 11 GHz
  • Termination Style: Cable - Crimp
  • Orientation: Straight
  • Mounting Type: -
  • Cable Type: RG-55, RG-142, RG-223, RG-400
  • Packaging: Bulk
  • Body Finish: Nickel
  • Body Material: Brass
  • Body Style: Straight
  • Brand: Amphenol RF
  • Contact Material: Brass
  • Contact Plating: Gold
  • Contact Termination: Crimp
  • Coupling Mechanism: Threaded
  • Isolation Type: Not Isolated
  • Mating Cycles: 500
  • Series: TNC
  • Factory Pack Quantity: 1
  • Voltage Rating: 500 V
  • Unit Weight: 0.493835 oz
