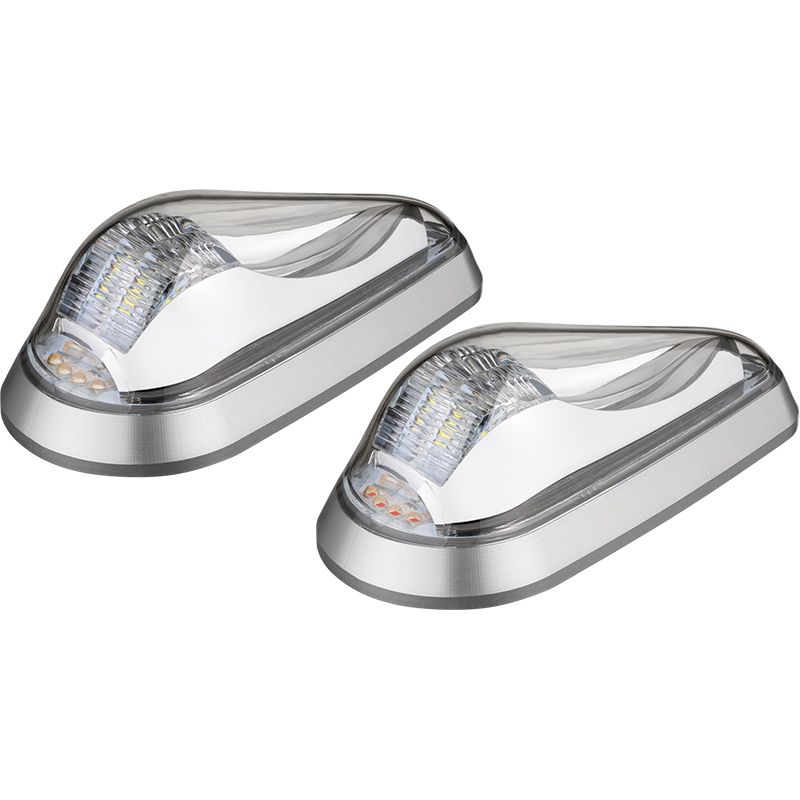

AeroLEDs Pulsar 650 Wingtip Forward Position / Anti-Collision Light Pair Certified (14V)

The AeroLEDs Pulsar 650 is a certified LED wingtip lighting pair for 14 VDC electrical systems. Each assembly combines a forward position light with an anti-collision light, providing the red and green wingtip positions required for a paired installation.

The pair is supplied under manufacturer part number 11-1280-B-12 and comprises:

• 11-1280-B-12-L – red position / anti-collision wingtip assembly
• 11-1280-B-12-R – green position / anti-collision wingtip assembly

AeroLEDs specifies FAA-TSOA/STC approval for the Pulsar 650 certified series. Each light incorporates a patented three-position mounting bracket.

• Nominal system voltage: 14 VDC
• Current draw per light: position light 0.8 A; anti-collision light 0.65 A average and 4.9 A peak
• Approximate dimensions per light: 102 × 48 × 38 mm
• Weight per light: approximately 0.11 kg

Roctexo part number: RX1-11-15272.

Refer to the applicable AeroLEDs installation instructions, installation template, datasheet and approval documentation before installation.
