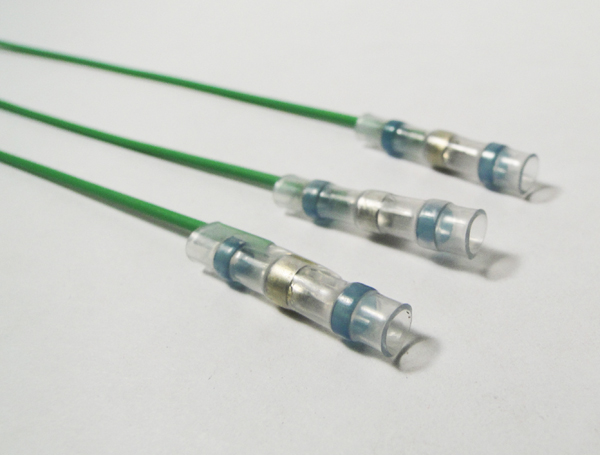

Single Conductor 1/4 Solder Sleeve With Pigtail

Single Conductor 1/4 Solder Sleeve With Pigtail

https://www.roctexo.com/web/image/product.template/107006/image_1920?unique=99a391e
Part numbers : RX1-11-14743 , CWT-7-W122-5 , 11-14743
Unit of Measure: EA

2.94 EUR / EA 2.94 EUR 2.94 € excl. VAT

2.94 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 185 EA ready to ship on Monday 2026-08-17
Order before 17:00 CET Tomorrow
Up to 526 EA ready to ship on Thursday 2026-08-20
Order before 17:00 CET Tomorrow
3,050 EA available on request, fees apply
Special order from vendor stock.

The TE Connectivity RAYCHEM CWT-7-W122-5 is a SolderSleeve shield terminator with a pre-installed pigtail. This single-conductor, 1/4-inch class sleeve provides a heat-shrinkable solder termination solution for cable-shield grounding applications.

  • Manufacturer part number: CWT-7-W122-5
  • TE Connectivity internal number: 764619-000
  • RAYCHEM CWT SolderSleeve shield terminator with pre-installed green, stranded, tin-plated lead
  • Expanded inside diameter: 6.4 mm; recovered inside diameter: 3.3 mm maximum
  • Overall length: 32.5 mm
  • Specified wire size: 1.5 mm² (16 AWG)
  • Pre-installed lead size: 0.38 mm²
  • Maximum operating temperature: 125 °C; maximum wire temperature: 85 °C
  • Splash-protection resistance property

TE Connectivity lists no government qualification and no MIL/NAS specification for this item. Confirm suitability against the applicable approved maintenance data and installation requirements before use.

Documentation: TE Connectivity dimensional drawing and CWT installation procedure.
