Sandia Stx 360 Panel Mount ADS-B Transponder

Image for illustration only. It may show a product series rather than the exact product offered.

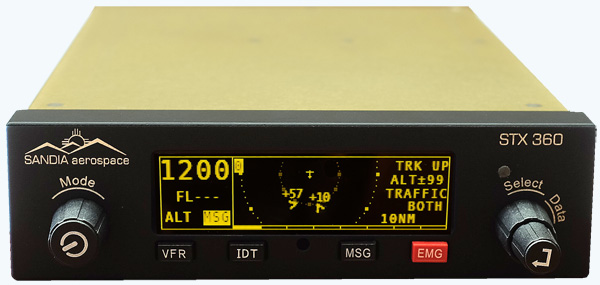

Sandia Stx 360 Panel Mount ADS-B Transponder

https://www.roctexo.com/web/image/product.template/32463/image_1920?unique=ec19459
Part numbers : RX1-11-14705 , 306430-00 , 11-14705
Unit of Measure: EA

2924.61 EUR / EA 2924.61 EUR 2,924.61 € excl. VAT

2924.61 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Sandia STX 360 Sentinel is a panel-mount 978 MHz UAT ADS-B In/Out unit combining ADS-B functionality with an integrated Mode A/C transponder. Manufacturer part number: 306430-00.

Its combination design provides a single squawk-code entry and incorporates an internal diplexer, allowing the UAT and transponder functions to use one antenna installation. The sunlight-readable OLED display presents traffic, METARs and unit status.

  • 978 MHz UAT ADS-B In/Out
  • Integrated Mode A/C transponder
  • Internal diplexer for a single UAT/transponder antenna installation
  • Traffic, METAR and status display
  • Pilot-selectable anonymous mode
  • Wireless-output capability for compatible portable-device weather and traffic display when installed with the required interface equipment
  • 11–32 VDC power input
  • Approximate behind-panel dimensions: 40.6 mm high × 156.2 mm wide × 199.1 mm deep
  • Approximate weight: 1.0 kg

Installation requires suitable GPS position and pressure-altitude sources, antennas, wiring and configuration in accordance with the applicable installation data. Confirm regulatory suitability and installation approval for the intended aircraft and operating environment before purchase or installation.

Documentation: Sandia Aerospace STX 360 Sentinel brochure (PDF)
