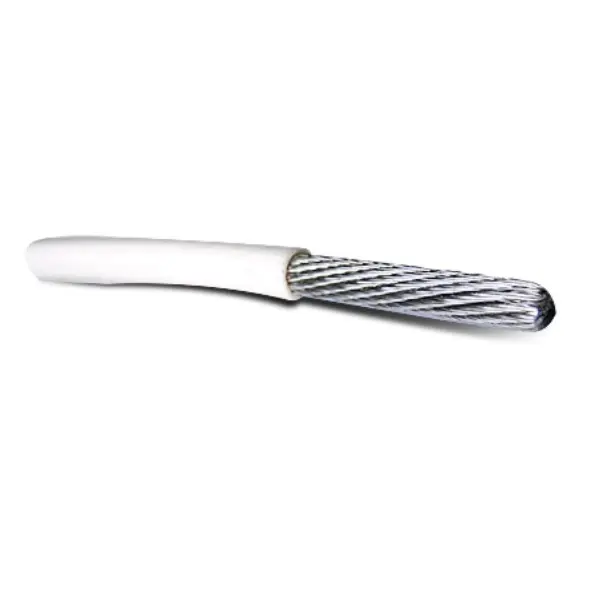

Unshielded 12GA White Wire M22759/16-12-9

Unshielded 12GA White Wire M22759/16-12-9

https://www.roctexo.com/web/image/product.template/3549/image_1920?unique=5aae992
Part numbers : RX1-11-14512 , J1177-9 , 11-14512
Unit of Measure: FT

1.04 EUR / FT 1.04 EUR 1.04 € excl. VAT

1.04 EUR / FT excl. VAT

Not Available For Sale

This combination does not exist.

Availability
110 FT ready to ship on Monday 2026-08-10
Order before 15:30 CET on Monday 2026-08-10
Up to 8,766 FT ready to ship on Thursday 2026-08-13
Order before 15:30 CET on Monday 2026-08-10
Up to 11,625 FT ready to ship on Monday 2026-08-17
Order before 15:30 CET on Monday 2026-08-10
8,215 FT available on request, fees apply
Special order from vendor stock.

Unshielded 12 AWG white aircraft electrical wire specified as M22759/16-12-9. This wire is suitable for aircraft wiring installations where the applicable wire specification, conductor size and insulation colour are required.

  • Specification: M22759/16-12-9
  • Manufacturer part number: J1177-9
  • Conductor size: 12 AWG
  • Construction: unshielded, tin-plated copper conductor
  • Insulation: extruded ETFE (Tefzel)
  • Colour: white
  • Rated voltage: 600 V
  • Maximum temperature rating: 150 °C
  • Unit of measure: foot

Please verify the required wire specification, gauge, colour and installation requirements before purchase.

Contact Us

Terms and Conditions

Share

Mil-SpecWire
Gauge		ColorPart Number
M22759/16-12-912White11-14512


Overview

For many years the standard hookup wire in light aircraft has been MIL-W-5086A, which calls for use of tin-coated copper conductor rated at 600 volts and temperatures of 105°C. This basic wire is then coated with various insulating coatings including PVC. There has been much discussion during the past few years about the use of wire with PVC in aircraft. The Air Force does not permit such wire to be used in military aircraft due to the toxic fumes generated in the event of a fire which can disable the crew. Although there is no formal restriction on the use of MIL-W-5086A wire as of early 1991, as our supplies of MIL-W-5086A wire are depleted we will now be supplying MIL-W-22759/16 wire which complies with current military and anticipated future FAA requirements.

This top quality aircraft unshielded wire is manufactured to Specification MIL-W-22759/16. It features standard tin-plated copper conductor and is insulated with extruded Tefzel (ethylene/tetrafluorbethylene) which has a maximum temperature rating of 150°C. This wire is rated for 600 volts.

Colors: white, Black, Blue, Green, Red, Yellow, and Striped
