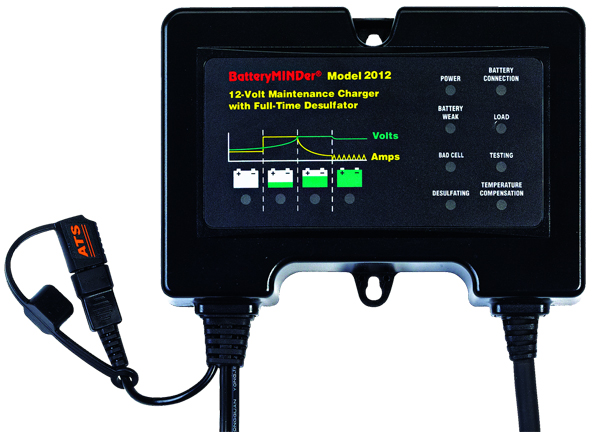

BatteryMINDer 2012-Obd

BatteryMINDer® 2012-OBD2 is a 12 V, 2 A charger, maintainer and desulfator from VDC Electronics, designed with an OBD2 connector for connection through a compatible vehicle diagnostic port. It provides automatic, temperature-compensated battery charging and maintenance, with high-frequency pulse desulfation for 12 V lead-acid batteries.

• Manufacturer part number: 2012-OBD2
• 12 V, 2 A charger-maintainer-desulfator
• OBD2 connection with SAE quick connector
• 90–240 VAC, 47–63 Hz input for worldwide use; a locally suitable mains plug adapter may be required
• Automatic temperature compensation from -20 °C to 50 °C
• Polarity-reversal and overcharge protection
• Built-in battery-condition indication
• IP65-rated enclosure
• Manufacturer-listed dimensions: approximately 145 × 103 × 54 mm

The manufacturer lists an OBD2 connector, installed ambient temperature sensor, battery clip lead, ring-terminal lead and AC/DC leads with SAE quick connector as included items. Refer to the manufacturer’s OBD-series instruction manual for installation, operating and safety information.

No aircraft-specific application, EASA approval or FAA approval is stated for this product. Confirm suitability of the intended electrical system and OBD2 connection before use.
