BatteryMINDer 2012-Agm-Obd

The BatteryMINDer® 2012-AGM-OBD2 is a 12 V, 2 A charger, maintainer and desulfator designed for specialty sealed AGM lead-acid batteries. Its SAE-to-OBD2 connection arrangement enables connection through a compatible vehicle OBD2 port, providing an alternative to direct battery-terminal access where appropriate.

The unit is specified for AGM batteries and is not intended for non-AGM battery types. It uses microprocessor-controlled charging with temperature compensation and automatic high-frequency pulse desulfation.

• Manufacturer part number: 2012-AGM-OBD2
• Nominal battery voltage: 12 V
• Charging current: 2 A
• Input supply: 90–240 VAC, 47–63 Hz
• Operating temperature compensation: -20 °C to +50 °C
• IP65-rated enclosure
• Overcharge and reverse-polarity protection
• Approximate dimensions: 14.5 × 10.3 × 5.4 cm

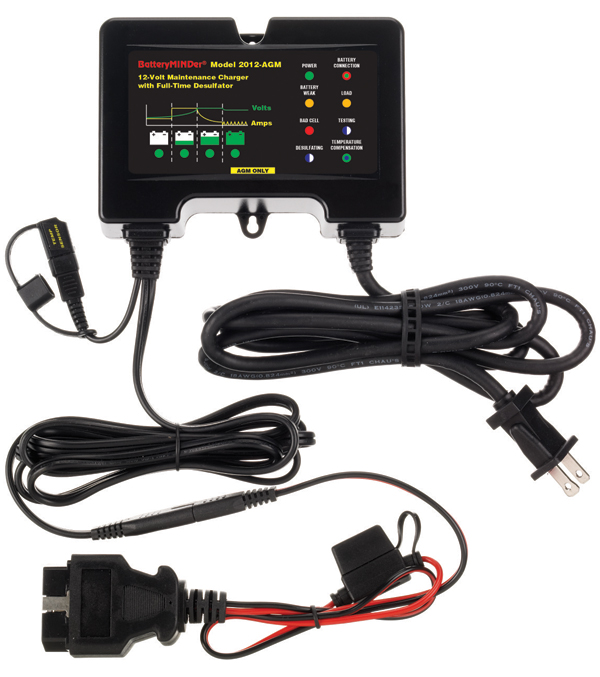

Supplied equipment is stated to include the charger-maintainer-desulfator, SAE-to-OBD2 connector, battery clip lead, fused ring-terminal lead, installed ambient temperature sensor, and AC/DC leads with SAE quick connector. Confirm the battery type, OBD2-port suitability and installation procedure against the manufacturer documentation before use.
