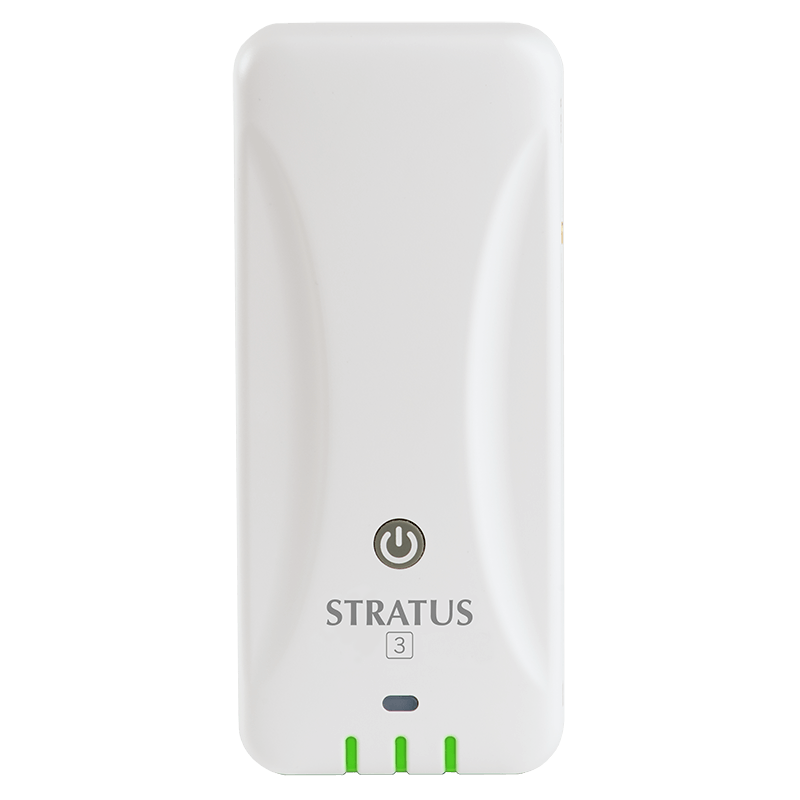

Appareo Stratus 3 ADS-B Receiver

The Appareo Stratus 3 is a portable ADS-B receiver designed to provide compatible flight applications with received traffic, WAAS GPS position and supplemental flight data via its dedicated Wi-Fi network.

Manufacturer part number: 153010-000061.

• Dual-band ADS-B traffic reception on 978 MHz and 1090 MHz.
• Integrated WAAS GPS, AHRS, pressure-altitude sensor and flight-data recorder.
• Supports compatible flight applications, including GDL 90 Open ADS-B mode for third-party apps when enabled.
• Portable, battery-operated unit with internal ADS-B and GPS antennas; remote antenna connections are supported.
• AHRS information is supplemental only and does not replace installed aircraft instruments or normal see-and-avoid procedures.

Important for European operations: the receiver uses UAT ground broadcasts for ADS-B weather. Appareo states that ADS-B weather is not available outside the United States, where UAT is not in use. Traffic reception and displayed information depend on local ADS-B infrastructure, aircraft equipage and operating conditions.

Documentation: Stratus 3 Pilot’s Guide (Appareo).
