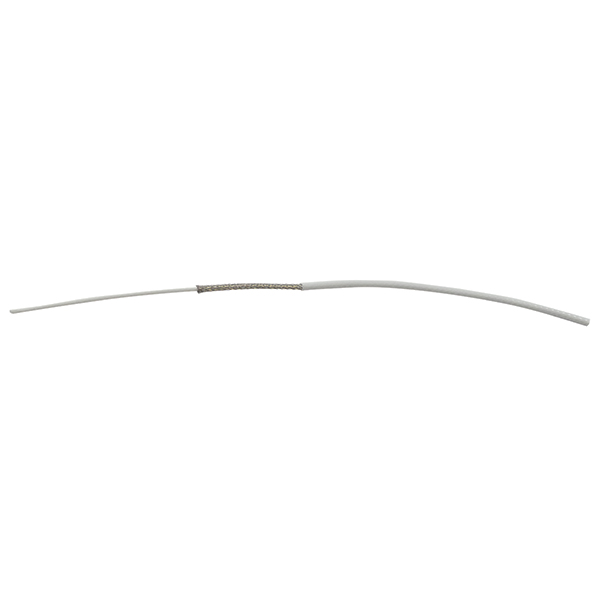

Shielded 22GA White Wire M27500-22TG1T14
Part Number(s): 11-14422, J2288
Documents
Unit of Measure Name:
ft
Internal Reference:
RX1-11-14422
| Mil Spec | Conductor | Wire Gauge | Part Number |
|---|---|---|---|
| M27500-22TG1T14 | 1 | 22 | 11-14422 |
Overview
| This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs. *8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500 |
Specifications
- Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
- Color: White
