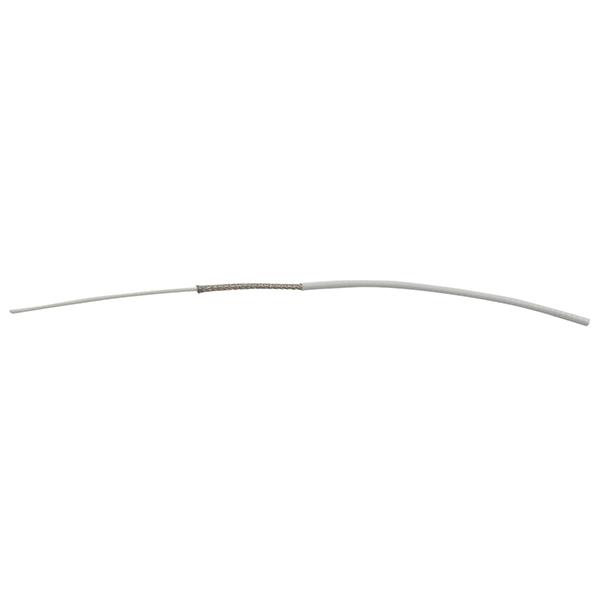

Shielded 16GA White Wire M27500-16TG1T14

Shielded 16GA White Wire M27500-16TG1T14

https://www.roctexo.com/web/image/product.template/89725/image_1920?unique=e79bb48
Part numbers : RX1-11-14416 , J3298 , 11-14416
Unit of Measure: FT

0.81 EUR / FT 0.81 EUR 0.81 € excl. VAT

0.81 EUR / FT excl. VAT

Not Available For Sale

This combination does not exist.

Availability
250 FT ready to ship on Monday 2026-08-31
Order before 15:30 CET on Monday 2026-08-31
Up to 13,694 FT ready to ship on Thursday 2026-09-03
Order before 15:30 CET on Monday 2026-08-31
Up to 13,705 FT ready to ship on Monday 2026-09-07
Order before 15:30 CET on Monday 2026-08-31
385 FT available on request, fees apply
Special order from vendor stock.

Shielded 16 AWG white aircraft wire manufactured to the M27500-16TG1T14 construction. This single-conductor wire combines a stranded tin-plated copper conductor with ETFE (Tefzel) insulation, tin-plated copper-braid shielding, and a white ETFE outer jacket.

  • Wire designation: M27500-16TG1T14
  • Manufacturer part number: J3298
  • 16 AWG stranded tin-plated copper conductor
  • Tin-plated copper braid shield with 85% coverage
  • White ETFE (Tefzel) jacket
  • Temperature rating: up to 150 °C
  • Voltage rating: 600 V
  • Supplied by the foot

A practical choice where shielded, jacketed aerospace electrical wire is required and white circuit identification is specified.

Contact Us

Terms and Conditions

Share

Mil SpecConductorWire GaugePart Number
M27500-16TG1T1411611-14416

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White


Reference Chart
