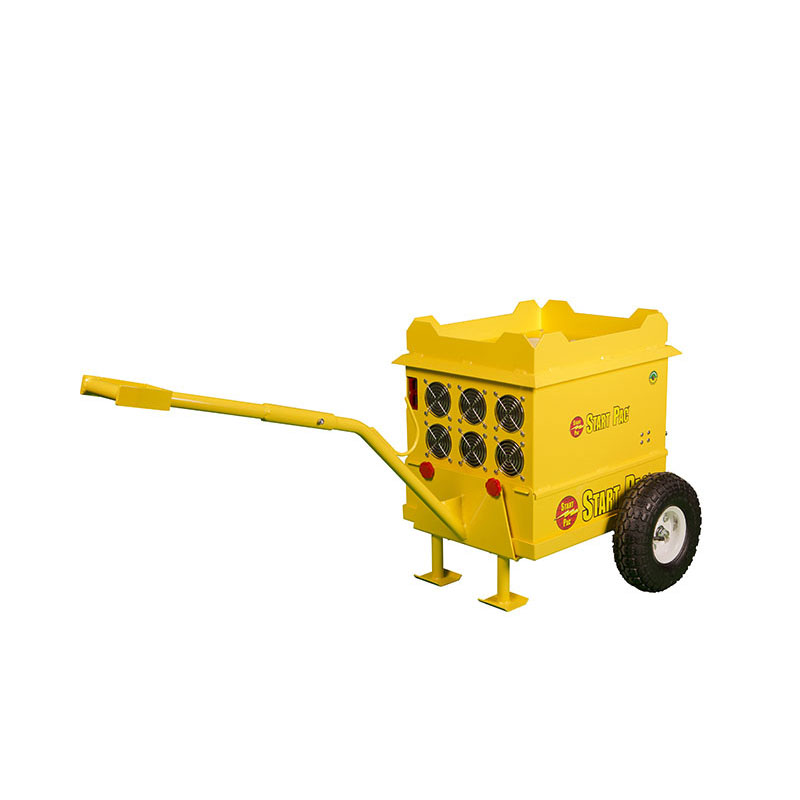

Start Pac Quick Charge GPU 3328QC/200 Amp

The START PAC 3328QC/200-SW is a mobile 28 V DC combination ground power unit and starting unit for ground-support operations. It combines a sealed lead-acid battery pack with a built-in charger and power supply, providing 28.5 V DC output with a maximum continuous output of 200 A.

The unit features START PAC’s Quick Change battery design for rapid battery-pack replacement, together with an integrated voltmeter, forced-air cooling, and over-current, over-voltage and over-temperature protection.

• Manufacturer part number: 3328QC/200-SW
• Battery voltage: 28 V DC
• DC output: 28.5 V DC
• Maximum continuous output: 200 A
• Peak current: 2,800 A
• Battery capacity: 56 Ah at a 10 A rate
• AC input: 200–240 V AC, single phase
• Built-in smart float-type charger
• Approximate overall dimensions: 127 × 58 × 58 cm
• Approximate complete weight: 89 kg

Confirm the required electrical supply, connector arrangement and aircraft ground-power requirements before use. No aircraft-specific compatibility or EASA/FAA approval is implied.

Documentation: START PAC 3328QC/200A specification sheet.
