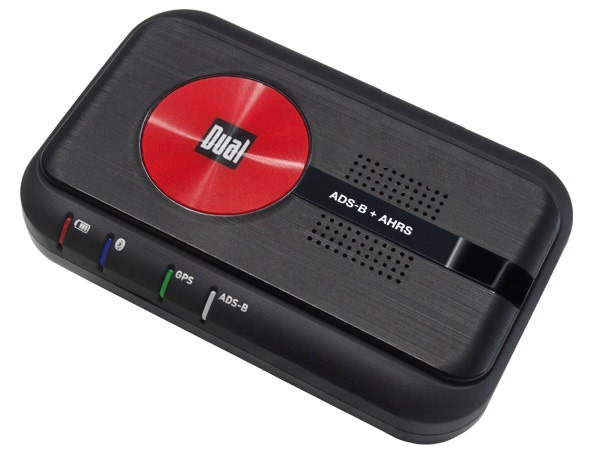

DUAL XGPS190 ADS-B AHRS RECEIVER WITH WEATHER AND TRAFFIC

The Dual Electronics XGPS190 is a portable GPS, dual-band ADS-B and AHRS receiver designed to provide position, traffic, weather and attitude data to compatible electronic flight bag (EFB) applications.

Its integrated WAAS GPS receiver, 978 MHz UAT and 1090 MHz ADS-B reception, and AHRS support applications that use synthetic-vision and flight-data functions. Bluetooth connectivity enables the unit to send GPS, AHRS and ADS-B data to up to two compatible devices simultaneously, while leaving the device Wi-Fi connection available for other uses.

• Manufacturer part number: XGPS190
• WAAS GPS receiver
• Dual-band ADS-B receiver: 978 MHz UAT and 1090 MHz ES
• ADS-B traffic and FIS-B weather-data reception where broadcast services are available
• Integrated AHRS for roll, pitch, yaw and magnetic-heading data in supported EFB applications
• Bluetooth connection for up to two compatible devices
• Removable ADS-B antenna and rechargeable internal battery
• Manufacturer-stated operating time: up to approximately 5 hours in ADS-B mode

For European operation, Dual Electronics states that ADS-B weather broadcasts are not available in Europe; traffic reception and GPS functions remain subject to local ADS-B service availability, coverage and compatible application support.

Refer to the Dual XGPS190 owner’s manual for operating instructions, limitations and current device-connection guidance.
